The unit achieved a 20°F temperature drop within just 10 minutes of operation, effectively cooling the cabin in the hot Southern climate.(6:33)
The system operates at a very quiet level, specifically noted for being gentle enough to allow for sleep while the unit is active.(5:55)

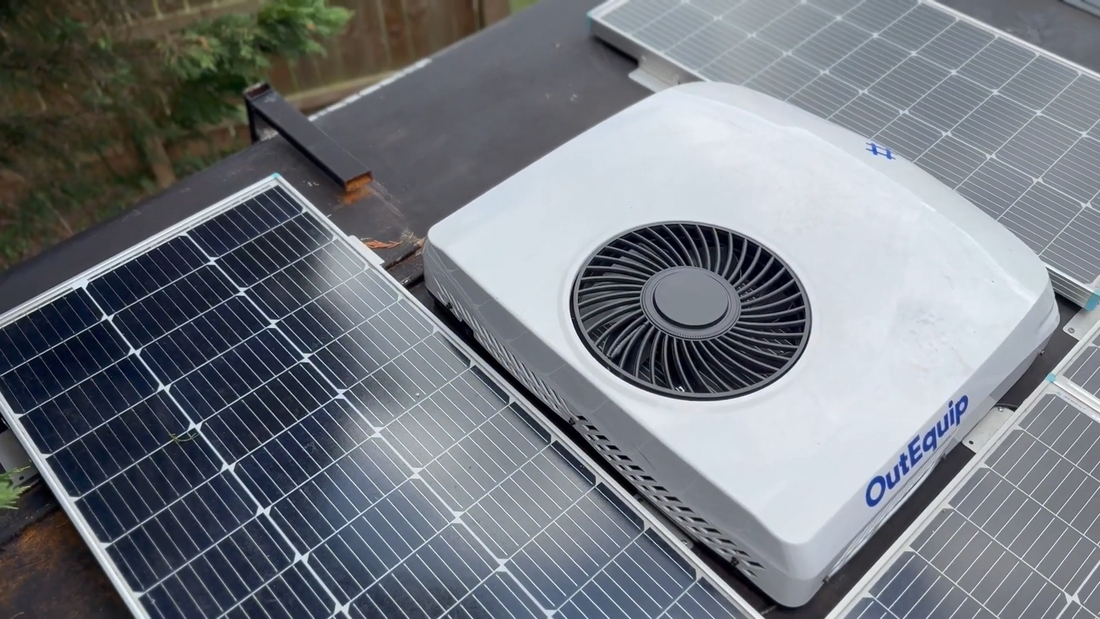

Thanks to the compact, low-profile design, the installers successfully added the necessary solar panels to their roof without running into any space constraints.(2:43)
The electrical system integrates a 48V battery bank that displays a steady 51.4V reading on the pure sine wave inverter, confirming a stable power foundation that supports the reliable operation of the AC unit.(4:36)
The team highly recommends this HVAC system for anyone planning long-distance cross-country trips, citing its reliable performance and seamless integration.(6:54)
Detailed Analysis
Roof Preparation and Structural Integration
The installation began on the custom off-grid mobile unit with a precise 14x14 inch roof cutout. This standard sizing ensures flexibility for future modifications without the need for additional measurement or cutting.
- Clean the roof surface thoroughly with soap and water to remove debris.
- Install the weather-proofing foam padding to ensure a moisture-tight barrier.
- Apply a high-heat threshold, UV-resistant sealant around the perimeter.
Electrical Setup and Power Management
The OutEquipPro unit is a 12V 10,000 BTU system that integrates into a larger electrical architecture. For this build, the power is drawn from a 248-volt battery bank, which is then routed through a step-down converter to meet the 12V requirements.
This approach allows for a highly efficient energy draw, ensuring the system remains operational for long durations. While the current wiring runs along the wall for initial testing, it is designed to be concealed within the wall cavity as the cabinetry build-out progresses.
Operational Efficiency and Comfort
Real-world testing in the hot Southern climate confirmed the unit's efficacy. Starting from an ambient temperature between 75°F and 80°F, the cabin reached a comfortable 65°F to 70°F range shortly after activation. The integrated safeguard features ensure the unit starts slowly and runs reliably, providing a consistent cooling experience for cross-country travel.
