The unit successfully achieves a cold air output of 51°F while running at its coldest setting.(6:45)
The system is noted to be very quiet, allowing for clear speech and normal conversation levels during operation.(6:52)
The installation features a custom 14x9 inch roof opening, which was carefully measured and cut to meet the minimum size requirements for the unit.(4:14)
This system is highly recommended for DIY van builders seeking an efficient 12V off-grid cooling solution due to its impressive cooling power and ease of installation.(7:10)
Detailed Analysis
Streamlined Installation Strategy

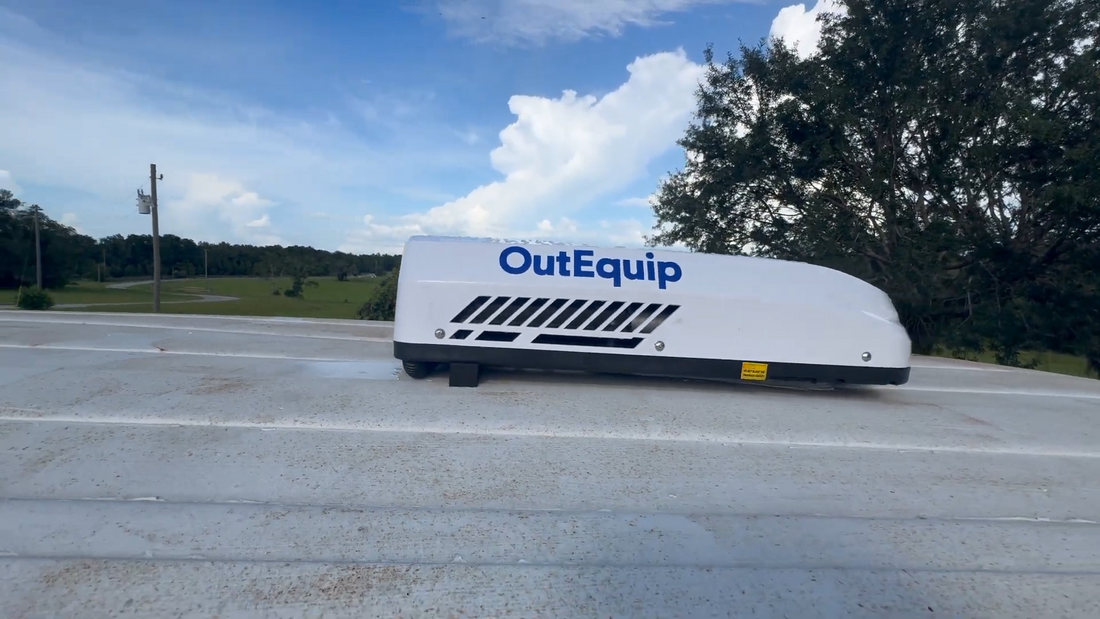

The installation of the OutEquip Summit 2 on the 2000 Chevy Express utilized the internal duct for power cable routing. This approach avoids drilling additional holes in the vehicle roof.
- Remove 12 exterior bolts to lift the top cover.
- Unscrew 9 bolts to access the internal duct cover.
- Route the power cord through the provided rear cutout and internal duct.
- Reinstall covers and secure all screws to finalize the clean look.
Roof Preparation and Sealing
To prepare the roof, a 14x9 inch hole was cut to fit the requirements of the unit. Proper weatherproofing was achieved using Sycoflex 291 sealant, which was applied to the gaskets and all crevices to ensure a secure, leak-proof seal.
Power Integration Insights
This 12V 10,000 BTU system is designed for efficient cooling. The power cord was routed through the pillar to connect with the user's battery bank located underneath the van. Extended cabling is required to finalize the electrical connection for full off-grid functionality.
