12V AC in a Truck Camper: A Year-Long Off-Grid Performance Review

12V AC in a Truck Camper: A Year-Long Off-Grid Performance Review


Reviewer Profile

Reviewer:Eric
DIY Skill:Experienced Off-Grid Builder
Model Name:Summit 2
Voltage:12V DC
Heating:With Heating
Vehicle Profile:Off-grid Truck Camper
Power System Setup:410Ah Lithium + 1200W Solar
Roof Opening Size:Standard 14.1x14.1 inch
Installation Time:Weekend Project
Location:Salt Lake City, UT

One-Year Performance Summary

Cooling Performance:
A year in, the lowest setting held the camper at a comfortable 77°F while the shaded temperature outside reached 87°F.
Power Efficiency:
Across its operating range, the AC used about 320 W on low and 650 W in turbo, making each setting easy to plan around.
Off-Grid Runtime:
The AC completed 24 hours on solar and batteries, kept the camper comfortable overnight, and left the battery bank at 73%.
Noise Level:Quiet - In Turbo mode with the compressor running at full power, the measured noise level is 62 dB.
Form Factor & Weight:Ultra-low profile at 6.3 inches and 43 lbs — 50% lighter than traditional units
Recommendation:After one year of intensive, real-world ownership, the owner offers a definitive recommendation for the AC based on its sustained performance and off-grid reliability.

Visual Highlights

Cooling Performance: Outside in the shade it's 87°F, in the sun well over 100°F (skewed), but inside the camper it's 77°F.(13:22)

Power Efficiency: After switching to Eco mode, solar input is around 350–360W while the AC is running. With plenty of solar and the lower AC setting, you can live comfortably inside.(11:32)

Off-Grid Runtime: 24‑hour test with a 446Ah LiFePO₄ battery: AC, fridge, and lights running all day.Only ~23% of the battery was used.(24:18)

Noise Level: 62 dB measured at full Turbo mode (compressor max). Smoother start/stop than the old 120V unit, less vibration – a noticeably quieter sleep environmen.(18:55)

Form Factor & Weight: 6.3 inches tall, 45 lbs. Over 50% lighter than the 90‑lb old AC it replaced. The low profile hides behind solar panels for a stealth, low‑drag installation.(10:10)

Recommendation: After a year of real‑world testing, the owner says this AC changed his off‑grid life. For efficiency, low profile, and energy independence, it’s a top contender,He highly recommends the OutEquipPro 12V AC.(25:12)

Detailed Analysis

Comfortable Cooling Through a Baja Heat Wave

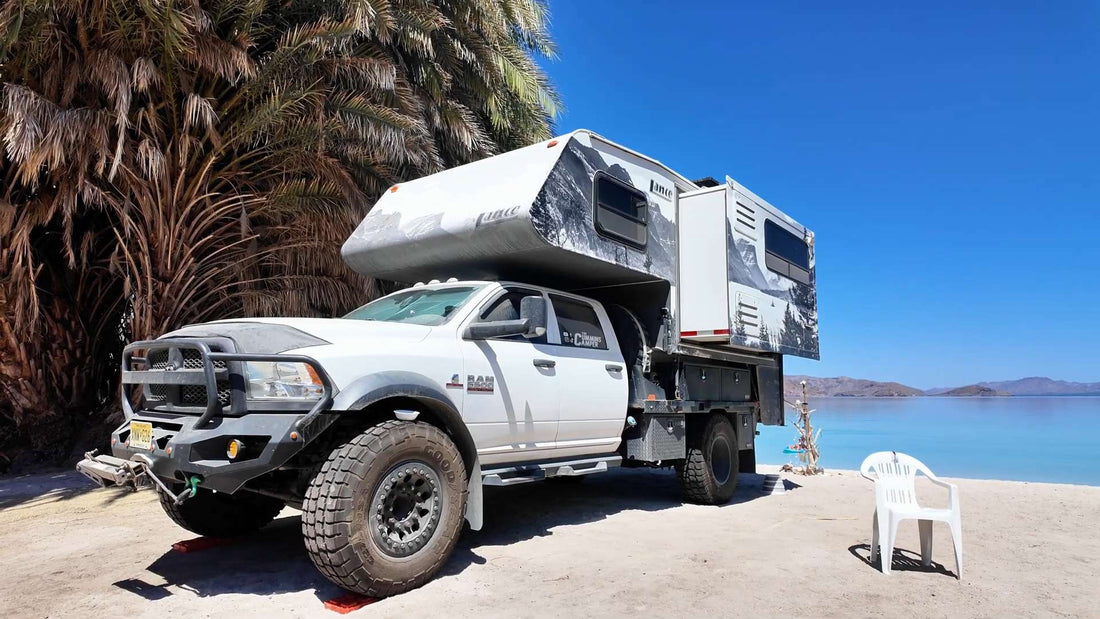

Eric tested the OutEquipPro Summit 2 in his off-grid truck camper during a 95°F day in Baja California. The test followed a full year of ownership, including frequent use in Baja and Arizona.

After a couple of hours on the lowest fan and compressor setting, the camper held 77°F inside while it was 87°F outside in the shade. Window inserts and afternoon shade also helped manage the heat, but the AC continued to cool the occupied camper while using its lowest-power setting.

At night, Eric used a cardboard air chute and a separate bedroom fan to direct more cold air toward the bed. With that setup, the camper reached a comfortable sleeping temperature, and the occupants slept well without the heat-related sweating they normally experienced without AC.

A Full Day and Night on Solar and Batteries

The current system uses two 460 Ah lithium batteries and 1,200 W of rooftop solar. In Eric's experience, the Summit 2 consumes about 650 W in turbo and about 320 W on its lowest fan setting with the compressor running.

During strong morning sun, the solar array produced roughly 850–900 W while the AC ran on turbo alongside the refrigerator, inverter, and other fans. On the lower setting, the system later sent about 350–360 W into the batteries while continuing to run the AC.

The camper remained comfortable overnight while the AC, refrigerator, bedroom fan, and smaller background loads continued running. Battery level reached 64% in the morning, then recovered to 73% by the final check; compared with the previous day's 96% peak, the complete 24-hour test produced a net 23-percentage-point drop.

A Lighter, Lower AC with a Simple 12 V Connection

The Summit 2 delivers 10,000 BTU from a housing only 6.3 inches tall and 43 lb. It replaced a roughly 90 lb Coleman unit and fit below the existing solar panels, reducing rooftop weight while preserving the camper's low profile.

The unit fit the camper's standard 14 × 14-inch roof opening. Connecting the 12 V power was especially simple: once the rooftop work was complete, the positive and negative leads connected directly to the battery.

The full roof installation still required application-specific work. Eric added a 3/4-inch birch spacer so the interior shroud could sit flush, while the included 100 A fuse was replaced in this build with a 100 A resettable circuit breaker.

One Year Later, Generator-Free Cooling Wins

The original 120 V Coleman drew about 1,080 W and was normally powered by a generator. The Summit 2 connects directly to the batteries, letting Eric cool the camper in parking lots and hot off-grid locations without starting that generator.

For everyday use, he usually runs the AC for four to six hours at night and sometimes as long as eight hours. After a year, it has worked extremely well for this camper, and Eric says he would not return to a conventional 120 V air conditioner powered by a generator or inverter.

His recommendation is direct: the Summit 2 is a strong choice for off-grid campers that need efficient 12 V cooling. The 24-hour Baja test showed why—comfortable temperatures, manageable battery use, and no generator.
