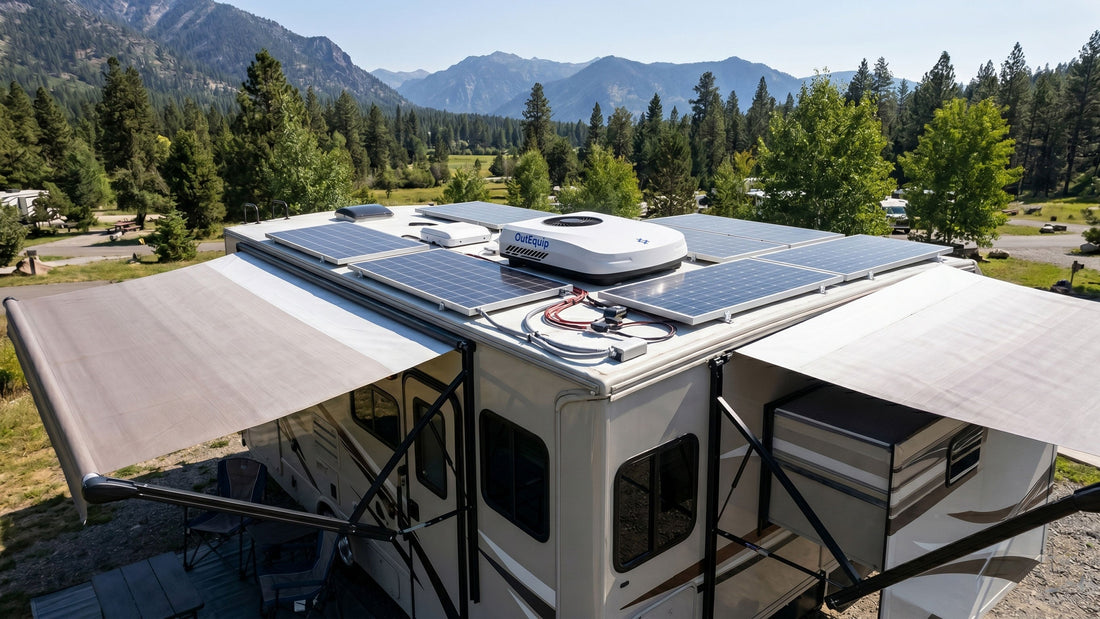

Off-Grid RV Air Conditioning: A Guide to Solar and Battery Powered AC Solutions in 2024

Traveling in an RV offers a unique sense of freedom and adventure, but comfort is key, especially when it comes to maintaining a cool and pleasant environment inside your home on wheels. Air conditioning is essential for enjoying your travels, whether you're exploring the sunny deserts of Arizona or the humid forests of the Pacific Northwest.

However, staying cool while living off the grid can be a challenge. That's where solar and battery power come in, providing an efficient, eco-friendly solution to keep your RV comfortable without relying on traditional power sources.

12v air conditioner for van

Choosing the Right Solar Setup

Calculating Your Energy Needs

Before you start shopping for solar panels, it's crucial to understand your energy requirements. Begin by calculating the power consumption of your air conditioner, one of the most energy-intensive devices in your RV. Check the specifications of your unit for an accurate number.

Next, list other electrical needs like lighting, appliances, and devices. Note the wattage of each, which can usually be found on a label or in the user manual. Include items such as the refrigerator, microwave, television, and cooking devices. Estimate the total wattage for lighting and consider the usage hours per day.

To better understand the energy needs of your RV, let's break down the power consumption of common appliances used in an RV.

  • 21-inch TV: With a power rating of about 50 watts and an estimated usage of 10 hours a day, this would consume around 500 watt-hours, or 0.5 kWh daily.
  • 90L Refrigerator: Running all day, this would not consume more than 0.5 kWh. Using an intermittent controller can help manage the fridge's startup time, reducing daily consumption to around 0.2 kWh.
  • 100W Laptop: Typically around 60 watts, with an estimated usage of 5 hours a day, this would consume around 500 watt-hours, or 0.5 kWh daily.
  • 800W Rice Cooker (4L Capacity): Used twice a day for a total of half an hour, this would consume around 400 watt-hours, or 0.4 kWh daily.
  • 900W Pressure Cooker: Used twice a day for a total of half an hour, this would consume around 450 watt-hours, or 0.45 kWh daily.
  • 800W Electric Water Bottle (4L Capacity): Used three times a day, each time for 5 minutes, this would consume around 200 watt-hours, or 0.2 kWh daily.
  • 10W LED Lights: Assuming three lights are used for 5 hours a day, this would consume around 150 watt-hours, or 0.15 kWh daily.
  • 500W Resistance Electric Stove: Used twice a day, each time for 20 minutes, this would consume around 350 watt-hours, or 0.35 kWh daily.
  • Air Conditioner (1HP): With an estimated power rating of 1000 watts per hour, if used for 5 hours, it would consume around 5 kWh daily

These are just examples of some of the appliances in an RV. There are many other areas in an RV that require electricity, so having a good solution for power consumption is crucial. By understanding the power consumption of these appliances, you can better calculate your total energy needs and choose the right solar panel and battery setup for your off-grid lifestyle.

This calculation helps determine the size and number of solar panels required. A 100-watt panel typically produces 300-600 watt-hours daily, depending on sunlight. Compare your total daily energy consumption with the panels' output to estimate how many panels you'll need, ensuring your solar setup meets your off-grid lifestyle efficiently.

Selecting Solar Panels

Selecting the right solar panels for your RV is essential after calculating your energy needs. Consider the efficiency of the panels: higher efficiency panels like monocrystalline are more effective and ideal for limited roof space, while polycrystalline panels offer a good balance of cost and performance. Thin-film panels are less efficient but flexible and lightweight.

Next, assess the size and power output of the panels. Measure your RV’s roof space to ensure the panels fit and leave room for mounting and ventilation.

Mounting options include flat mounts, which are aerodynamic for frequent travel; adjustable mounts, which can tilt towards the sun for better efficiency when parked; and portable setups, which can be placed on the ground to follow the sun, useful for limited roof space.

Finally, consider the durability and weather resistance of the panels. Look for panels with high durability ratings and strong warranties to withstand various weather conditions. Panels designed for mobile or marine use offer added resilience.

By balancing efficiency, size, mounting options, and durability, you can select solar panels that provide reliable power for your RV and enhance your off-grid living experience.

Types of Solar Panels

1.Monocrystalline Solar Panels

These are made from a single crystal structure. They have the highest efficiency rates since they are made out of the highest-grade silicon.

  • Advantages: High efficiency; Long lifespan; Space-efficient
  • Disadvantages: Most expensive; Performance drops in cloudy or low light conditions
  • Best for: RVs with limited roof space, and those who want to maximize power production

2.Polycrystalline Solar Panels

These are made from multiple crystal structures. They have slightly lower efficiency rates than monocrystalline panels.

  • Advantages: Lower cost than monocrystalline; Slightly less heat tolerant
  • Disadvantages: Lower efficiency; Larger space requirement
  • Best for: RVs with ample roof space, and those looking for a balance between cost and efficiency.

3.Thin-Film Solar Panels

These are made by depositing one or more thin layers of photovoltaic material onto a substrate.

  • Advantages: Most affordable; Flexible and lightweight; Perform well in high heat and low light
  • Disadvantages: Lowest efficiency; Shorter lifespan; Require most space
  • Best for: RVs with large roof space, and those looking for the most cost-effective option.

Choosing a Charge Controller

When it comes to harnessing solar power for your RV, one of the key components in your setup is a charge controller. This device plays a crucial role in regulating the energy flow from your solar panels to your batteries, ensuring that your batteries are charged efficiently and safely. There are two main types of charge controllers that you can consider, each with its own advantages and disadvantages:

  • PWM (Pulse Width Modulation) Controllers: These are the more basic type of charge controllers. They work by slowly reducing the amount of power applied to the batteries as they get closer to full charge. This type of controller is generally less expensive, making it a good option if you're on a tight budget or have a smaller solar setup. However, PWM controllers are less efficient than their MPPT counterparts. They're best suited for smaller systems and for situations where the solar panel voltage is the same as the battery voltage.
  • MPPT (Maximum Power Point Tracking) Controllers: These are the more advanced type of charge controllers. They operate by adjusting their input voltage to harvest the maximum power from the solar panels and then converting this power to supply the varying voltage requirements of the batteries. MPPT controllers are more efficient than PWM controllers, especially in varying light conditions, which makes them a great choice if you want to get the most out of your solar setup. However, they do come with a higher price tag. The investment can be worth it if you have a larger solar setup or if you frequently camp in areas with variable light conditions.

In conclusion, the choice between a PWM and an MPPT charge controller depends on your specific needs, the size of your solar setup, and your budget. Both types have their own strengths, and the right one for you will depend on your individual circumstances.

Selecting the Right Battery System

Types of Batteries for RV Use

Choosing the right battery is crucial for an efficient solar setup. Deep cycle batteries are designed for regular discharge and recharge cycles, making them ideal for RV use. They come in various types:

1.Lead-Acid Batteries

These are reliable and cost-effective, but they require maintenance and are heavier.

  • Advantages: Lower cost; Proven technology; Recyclable
  • Disadvantages: Require regular maintenance; Heavier; Shorter lifespan
  • Best for: Those on a budget and willing to perform regular maintenance.

2.Lithium-Ion Batteries

These are more expensive but offer better performance, longer life, and less maintenance.

  • Advantages: High efficiency; Long lifespan; Lightweight; No maintenance
  • Disadvantages: High upfront cost
  • Best for: Those who want high performance, long lifespan, and are willing to invest more upfront.

3.Nickel-Metal Hydride Batteries

These batteries are often used in hybrid electric vehicles due to their high energy density and long cycle life.

  • Advantages: High energy density; Long cycle life
  • Disadvantages: More expensive; Lower specific energy
  • Best for: Those who need a balance of energy density and cycle life, and are willing to pay a bit more.

4.Lithium Cobalt Oxide Batteries

These batteries are known for their high specific energy, making them a popular choice for portable electronics.

  • Advantages: High specific energy
  • Disadvantages: Shorter lifespan; More expensive
  • Best for: Those who need a high-energy battery for portable devices and are willing to invest more.

5.Lithium Manganese Oxide Batteries

These batteries offer a balance of high energy and power density, with a long lifespan.

  • Advantages: High energy and power density; Long lifespan
  • Disadvantages: Can be more expensive than other options
  • Best for: Those who need a high-performance battery for power tools and electric vehicles.

6.Lithium Iron Phosphate Batteries

These batteries are prized for their long cycle life and safety features.

  • Advantages: Long cycle life; Safety features
  • Disadvantages: Lower energy density
  • Best for: Those who value safety and longevity, particularly for use in electric vehicles and renewable energy systems.

7.Ternary Lithium Batteries (Nickel Cobalt Manganese)

  • These batteries offer high energy density and a long cycle life.
  • Advantages: High energy density; Long cycle life
  • Disadvantages: Can be more expensive than other options
  • Best for: Those who need a high-energy battery for electric vehicles and large-scale energy storage systems, and are willing to invest more.

Choosing the right type of battery for your needs is a crucial decision that can significantly impact the performance and efficiency of your system. Each type of battery has its own strengths and weaknesses, and the best choice for you will depend on your specific needs and circumstances.

Battery Capacity and Configuration

Determining the required amp-hours for your battery system is crucial to ensure sufficient energy storage for your RV. Start by assessing your energy consumption, considering not only the air conditioner but also other electrical devices and appliances. Calculate the total watt-hours consumed per day and divide by the nominal battery voltage (usually 12V for RVs) to get the required amp-hours (Ah). For example, if your daily energy consumption is 1500 watt-hours and you're using a 12V system, you would need a battery bank with a capacity of at least 125 Ah.

Next, consider the configuration of your battery bank. Connecting batteries in series increases the voltage while keeping the capacity the same. This is useful for applications requiring higher voltage, such as powering inverters for AC appliances. On the other hand, connecting batteries in parallel increases the capacity while keeping the voltage the same. This is beneficial for increasing the overall capacity of the battery bank to meet higher energy demands.

Battery Maintenance and Safety

Regularly maintaining your RV batteries is crucial for their longevity and safety. Start by checking connections to ensure they're clean and tight, as corrosion and loose connections can lead to voltage drops and reduced efficiency.

Monitor battery charge levels to prevent overcharging or deep discharging, which can damage batteries and shorten their lifespan. Invest in a battery monitor or management system for accurate tracking of voltage, current, and state of charge.

Additionally, it's essential to ensure that the combined charging capacity from either solar panels or your charging source exceeds the energy consumption of your air conditioner. This ensures that there's always enough power available to keep your air conditioner running smoothly, regardless of whether you're using solar energy, batteries, or a combination of both.

By proper maintenance and adherence to safety protocols, you can maximize your batteries' lifespan and reliability, ensuring smooth operation of your RV's electrical system during your travels.

12V RV ac

Strategies for Pairing Solar Panels and Batteries in an RV

Adding to the previous information, let's discuss how to pair batteries and solar panels for efficient use in an RV.

RVs typically come equipped with a certain battery capacity for storing electricity. Usually, RVs are equipped with 1-2 storage batteries, generally between 100Ah-200Ah. This can basically satisfy the needs of RV lighting, rice cookers, and other simple appliances.

However, if you frequently find yourself in situations without access to grid electricity, it's recommended to install a larger capacity battery system, between 600-1000Ah. This can ensure around 6-9 kWh of electricity daily, enough to power most of your RV's needs.

In combination with rooftop solar panels, a setup of around 400-600W is recommended. This can generate around 1 kWh of electricity daily, providing a steady charge to your battery system.

By pairing a suitable battery system with an efficient solar panel setup, you can ensure a reliable power supply for your off-grid RV lifestyle. This combination allows you to enjoy the freedom of RV travel, without worrying about power shortages, while also contributing to environmental sustainability.

By strategically pairing a larger capacity battery system with an efficient solar panel setup, you can create a power solution that not only meets your daily needs but also ensures you're prepared for extended periods of off-grid living. This approach allows you to enjoy the freedom and adventure of RV travel, without the worry of running out of power.

Integrating Solar and Battery with RV Air Conditioning

Inverter Selection and Sizing

An inverter converts the DC power from your batteries into AC power for your 12V air conditioner and other appliances. Choose between pure sine wave (better for sensitive electronics) and modified sine wave inverters. Ensure the inverter can handle the air conditioner's startup load.

Wiring and Installation Tips

Ensuring a proper setup of your solar power system is crucial for efficiency and safety. Here are some condensed tips for the wiring and installation process:

Correct Gauge Wire: Use the appropriate gauge wire for your system to prevent power loss and overheating. The right gauge depends on your system's voltage and wire length.

Secure Connections: Make sure all connections are tight to avoid power loss and potential fire hazards. This includes all links between solar panels, the charge controller, the battery, and any powered devices.

Wire Protection: Protect your wires from physical damage and environmental factors using conduit or wire guards. Keep wires organized and secured to prevent accidents.

Regular Maintenance: Check wires and connections regularly, clean solar panels, and monitor system performance to keep your system running safely and efficiently.

By following these tips, you can ensure a safe and efficient solar power system.

Monitoring and Management Systems

Invest in monitoring systems to track energy usage and efficiency. Smart management systems can automate power distribution, ensuring optimal performance and preventing over-discharge of batteries.

Example of Choosing Solar Panels and Batteries

When planning your RV solar setup, it's important to consider your daily energy consumption. For instance, if your daily energy usage is around 1500 watt-hours, and you're running a 12V system, you would need a battery bank with a capacity of at least 125 Ah. This is calculated by dividing your daily energy consumption (in watt-hours) by your system voltage (in volts). In this case, 1500 divided by 12 equals 125 Ah. This ensures that your battery bank has enough capacity to support your daily energy needs.

If you're working with limited roof space, you might opt for monocrystalline solar panels. These panels are known for their high efficiency and compact size, making them a great choice for RVs with limited available space. Two 100-watt monocrystalline solar panels could typically produce between 300-600 watt-hours daily, depending on the amount of sunlight they receive. This range accounts for variables like weather conditions and the angle of the sun, which can affect solar panel output.

In terms of the battery, if you're willing to invest more for better performance and longevity, a lithium-ion battery would be a good choice. These batteries may have a higher upfront cost, but they offer many benefits that can make them worth the investment. For example, they have a high energy density, meaning they can store a lot of energy relative to their size. They also have a long lifespan and require no maintenance, which can save you time and money in the long run.

Let's take a specific RV model as an example, the Winnebago Revel. This model is popular among adventurers due to its off-road capabilities and compact size. If you were to equip the Revel with a solar setup based on the parameters above, you would need to install the two 100-watt monocrystalline solar panels on the roof. The lithium-ion battery could be installed in one of the storage compartments, where it would be easy to access for monitoring and would not take up valuable living space. With this setup, you could comfortably meet your daily energy needs, even when off-grid.

Troubleshooting and Maintenance

Routine maintenance keeps your system running efficiently. Regularly clean solar panels, check battery health, and perform necessary replacements. Following these practices will extend the life of your components and ensure consistent performance.

Living off the grid in your RV with a solar and battery powered air conditioning system offers numerous benefits, from environmental impact and cost savings to unmatched independence and flexibility. By understanding your energy needs and carefully selecting the right components, you can create a reliable and efficient setup.

Embrace the freedom of sustainable travel and explore the possibilities of off-grid living. Investing in solar and battery power not only enhances your RV experience but also contributes to a greener planet. Take the plunge and start your journey towards a more sustainable and self-sufficient lifestyle on the road.
