8,000 BTU Rooftop Air Conditioner, 12V DC Cooling & Heating Unit for RVs, Vans, Campers, Tractors, Trucks

Designed for heavy equipment, commercial vehicles, utility fleets, tractors, skid steers, vans, and custom vehicle conversions, this Ultra-Low Profile 12V Rooftop Air Conditioner delivers dependable year-round climate control in an exceptionally compact package.

With an exterior height of just 130 mm (5.1 in), it minimizes overall vehicle height while providing powerful 8,000 BTU/h cooling and an integrated 1,000W electric heater for all-season comfort. The unit arrives factory pre-charged with R134a refrigerant, allowing for a simplified installation without refrigerant charging during normal setup.

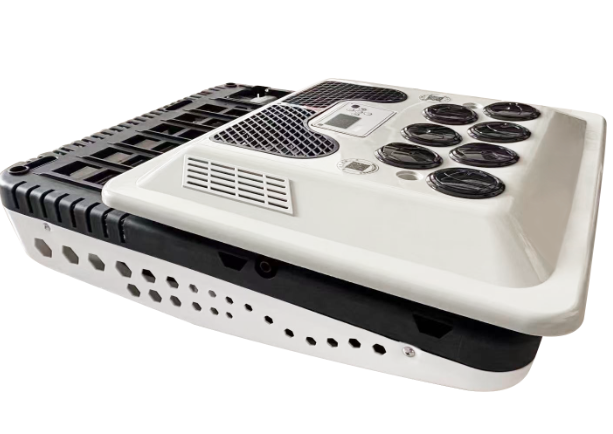

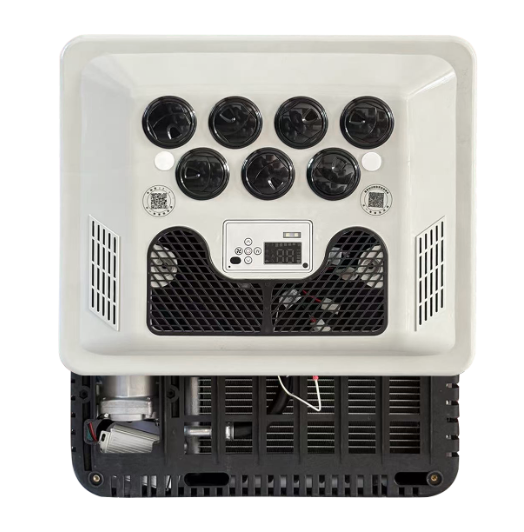

Its modern interior panel features a digital LCD display, wireless remote control, voice prompt function, integrated LED reading lights, and seven fully adjustable 360° air outlets to provide comfortable, even airflow throughout the cabin.

Whether installed on heavy machinery, commercial work vehicles, or compact off-grid camper builds, this rooftop unit offers an efficient and space-saving climate control solution.

Key Features

Ultra-Low Profile Design

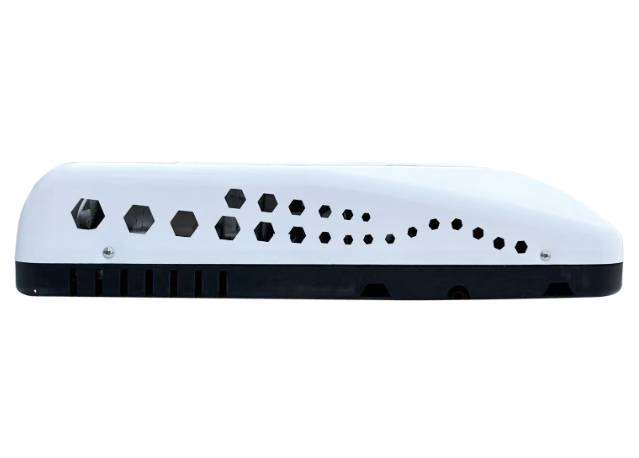

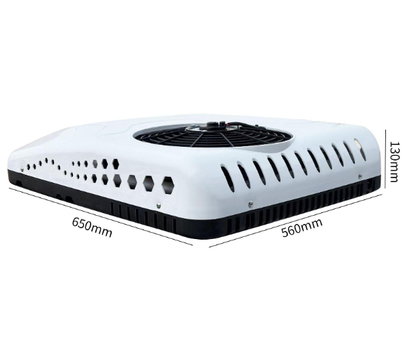

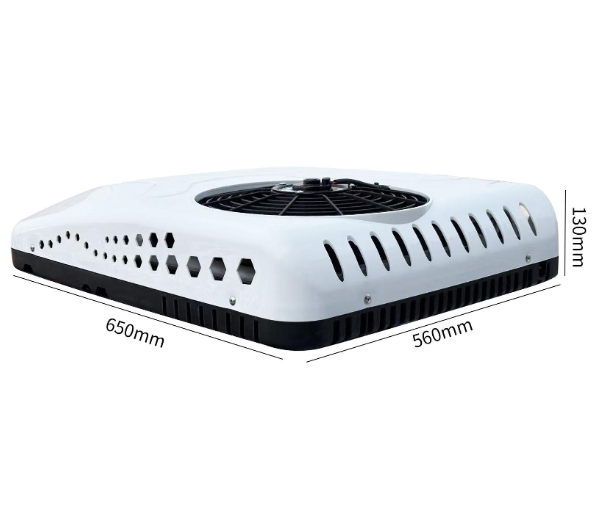

At only 130 mm (5.1 in) tall, the aerodynamic housing reduces wind resistance while providing additional clearance for garages, low bridges, tree branches, and other overhead obstacles.

Cooling & Heating in One Unit

Provides approximately 8,000 BTU/h (2.3 kW) of cooling capacity along with an integrated 1,000W electric heater, delivering comfortable cabin temperatures throughout the year.

Factory Pre-Charged Refrigeration System

Pre-filled with R134a refrigerant and fully sealed at the factory. No vacuuming or refrigerant charging is required during standard installation.

Uniform 360° Air Distribution

Seven fully adjustable rotating air vents and a large diamond-pattern return air grille distribute airflow evenly while helping eliminate direct cold or hot air blasts.

Smart Interior Control Panel

The upgraded ceiling assembly includes:

• Digital LCD display
• Wireless remote control
• Voice prompt function
• Integrated LED reading lights
• Simple one-touch operation

Compact Footprint

Designed for vehicles where roof space is limited while still delivering powerful climate performance.

Technical Specifications

Power Consumption

What's Included

• 1 × Integrated Rooftop Air Conditioner (Outdoor Unit)
• 1 × Interior Ceiling Control Panel
• 1 × Wireless Remote Control
• 1 × Mounting Foam Gasket
• 1 × Sealing Strip Set
• 1 × Wiring Harness
• 1 × Mounting Hardware Kit
• 1 × User Manual
• 1 × Quality Inspection Certificate

Ideal Applications

Perfect for:

• Commercial trucks
• Heavy equipment
• Tractors
• Skid steers
• Construction machinery
• Agricultural vehicles
• Utility service vehicles
• Compact camper van conversions
• Specialty vehicles
• Electric utility vehicles
• Enclosed work vehicles

Installation Notes

• Minimum roof opening required: 225 × 299 mm (8.8 × 11.8 in)
• Designed for 12V DC electrical systems
• Unit is factory pre-charged with refrigerant and ready for standard installation
• Ensure sufficient structural support and weatherproof sealing during installation
