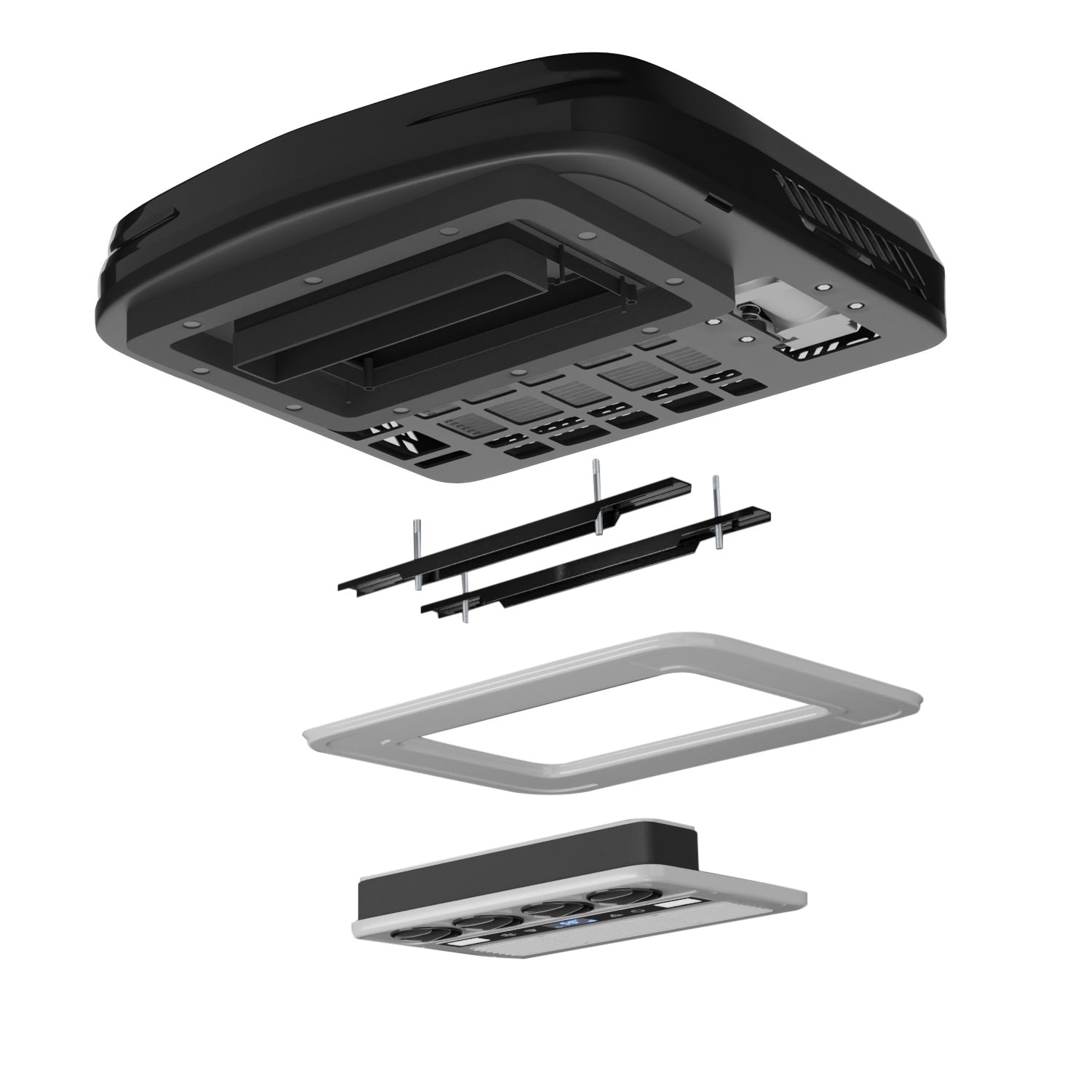

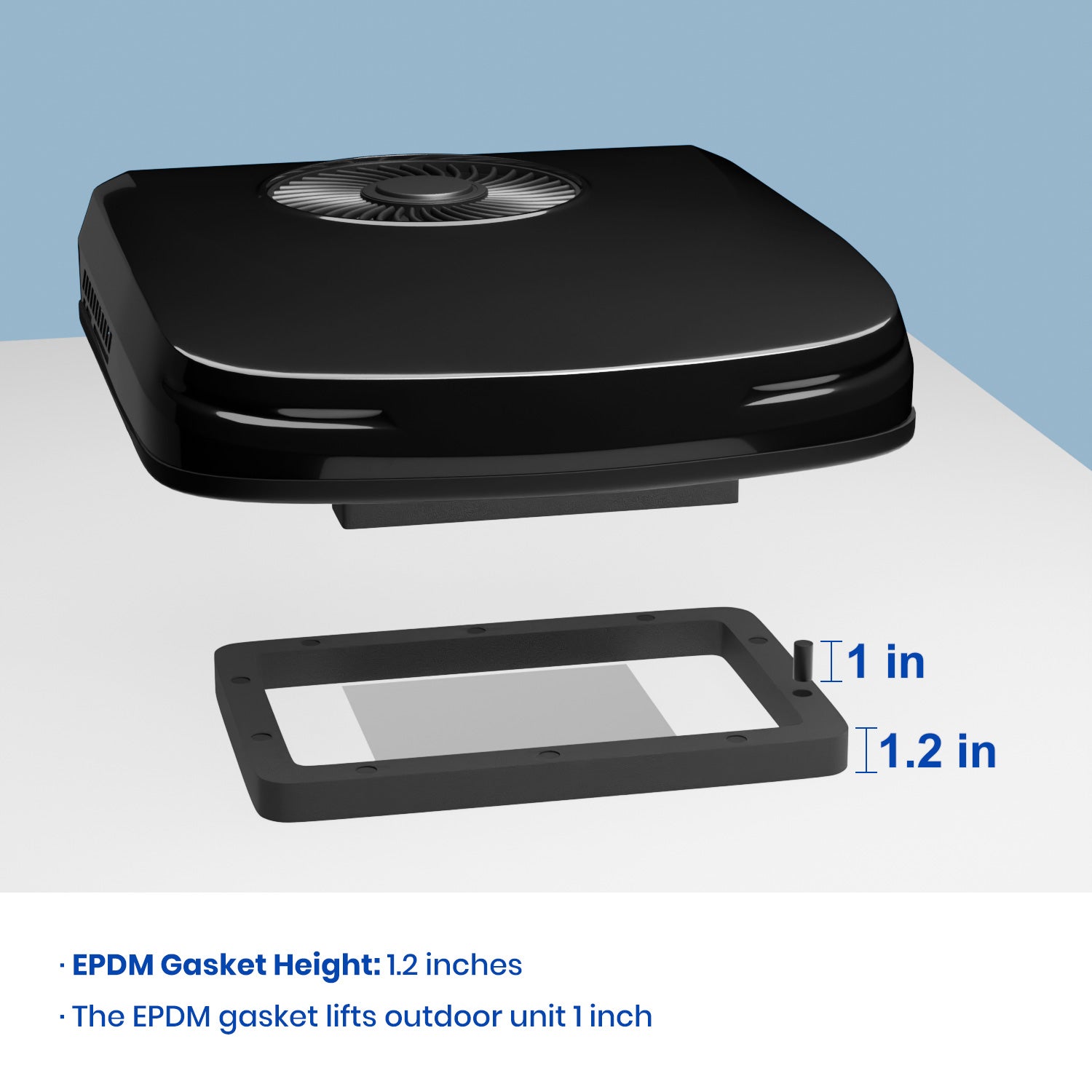

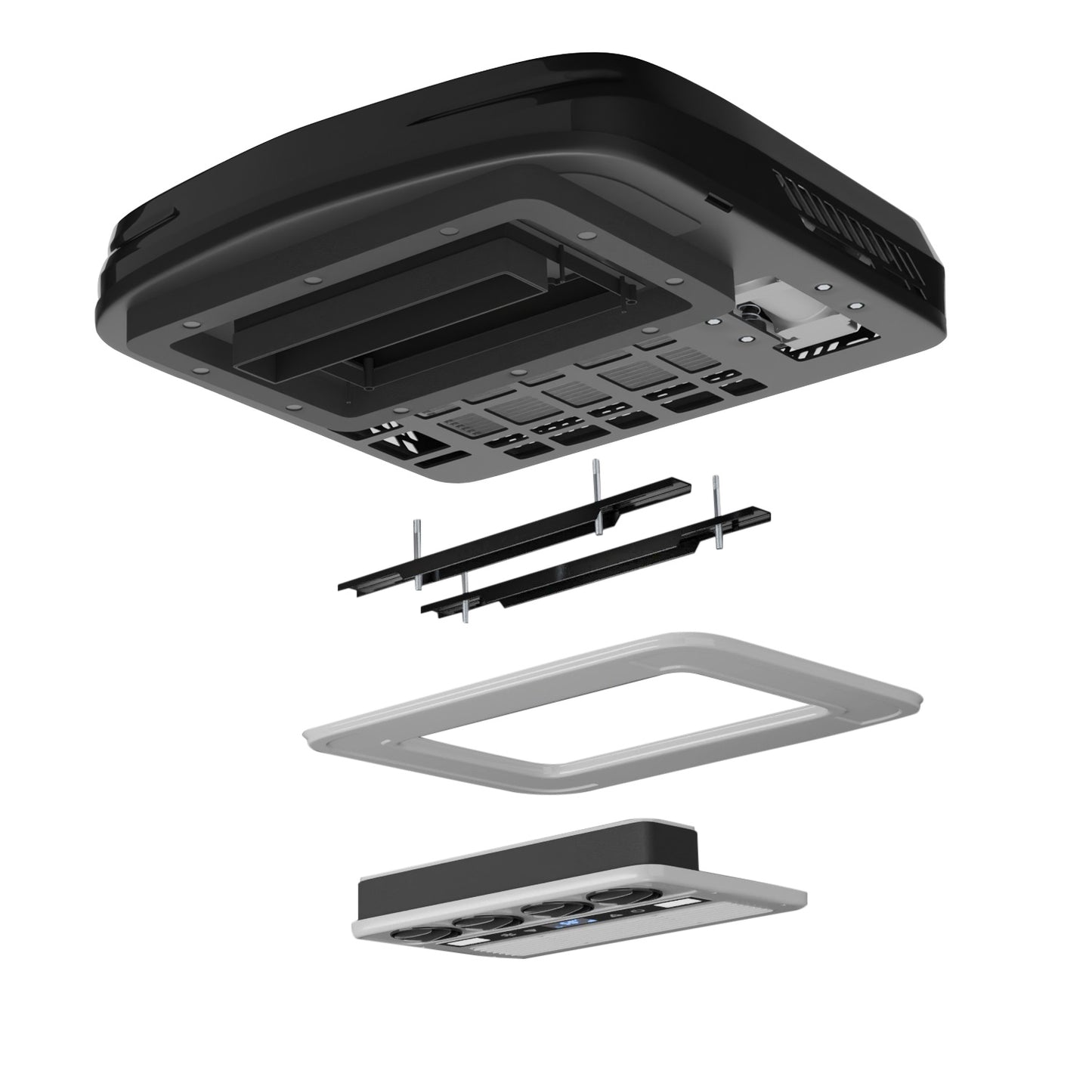

1. Mount external unit: Clean roof, apply gasket around the roof opening.
2. Secure with brackets: Attach rods to unit base, align and tighten brackets to roof.
3. Install indoor panel: Align with external unit rods, secure tightly.
Highlights:
12V/24V Powered
Heating & Cooling
Inverter Technology
Lightweight Lowprofile
Powerful Capacity
Battery Protection
Stay Cool, Stay Warm Go Green Stay Cool Stay Warm Go Green
Rapid Cooling for Immediate Comfort
- Cool your RV in just 15 minutes with our powerful 10,000 BTU air conditioner.
- Fast temperature adjustments and a 450 m³/h air volume ensure comfort in any season.
Safe Heating for Cozy Comfort
- The 4,500 BTU PTC heater provides supplementary warmth, ideal for mild temperatures and small spaces, but is not suitable as a primary heat source in extreme cold or very large spaces.
Effortless Cooling Anywhere

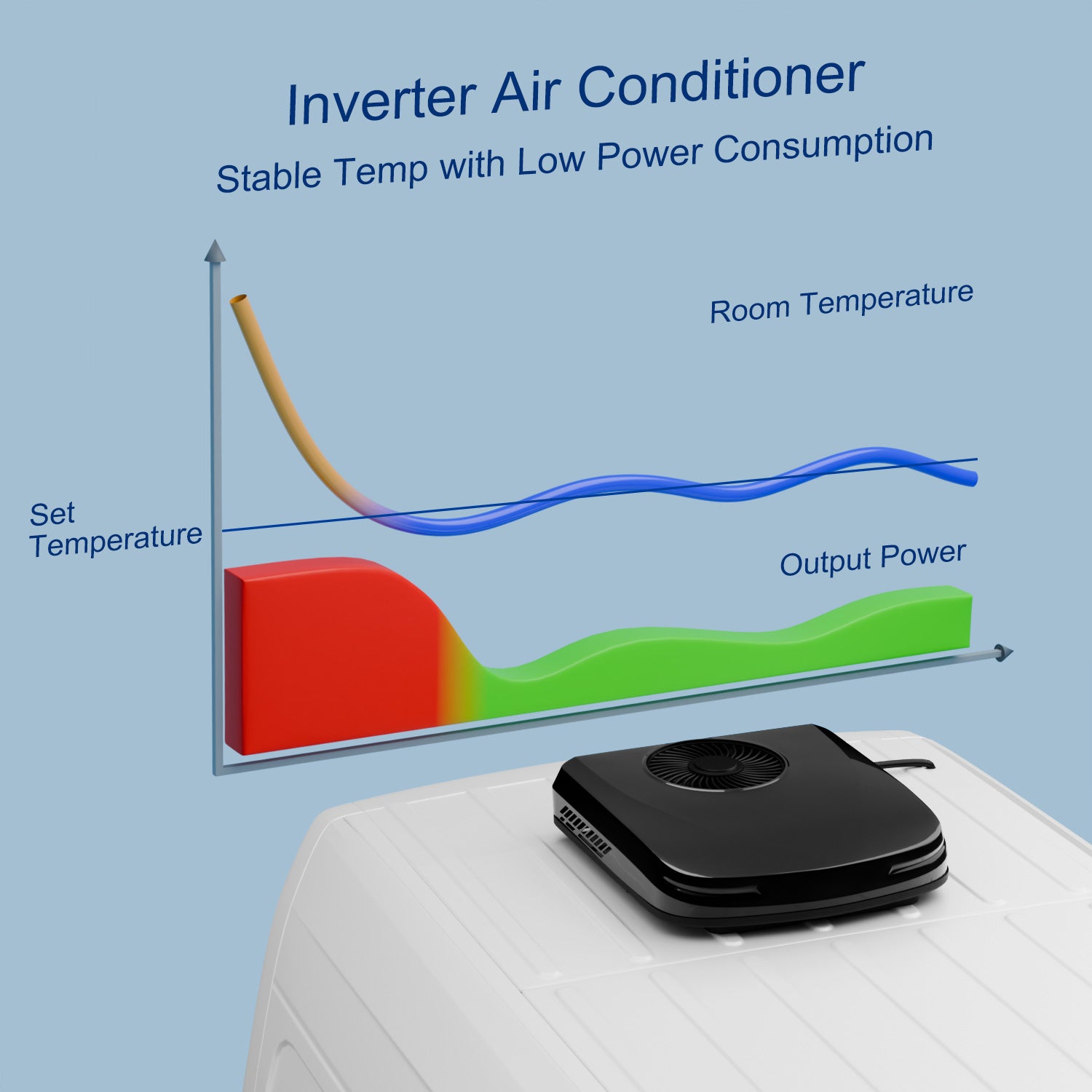

- Inverter technology adjusts power consumption based on demand, extending battery life and ensuring efficient, consistent cooling.
- Get up to 8-9 hours in max cooling mode with a 12V 480Ah battery and 10-11 hours with a 12V 600Ah battery when parked—ideal for off-grid adventures.

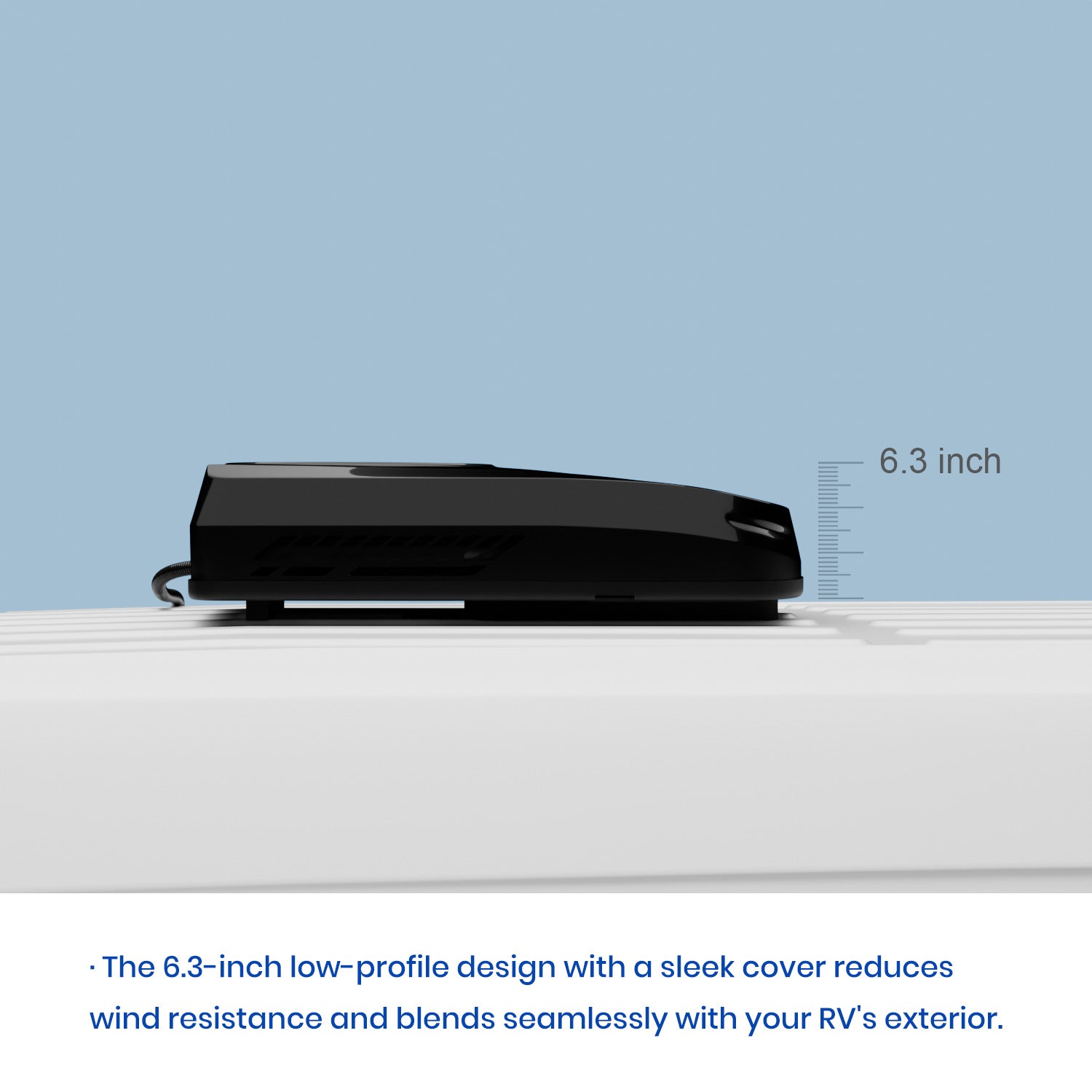

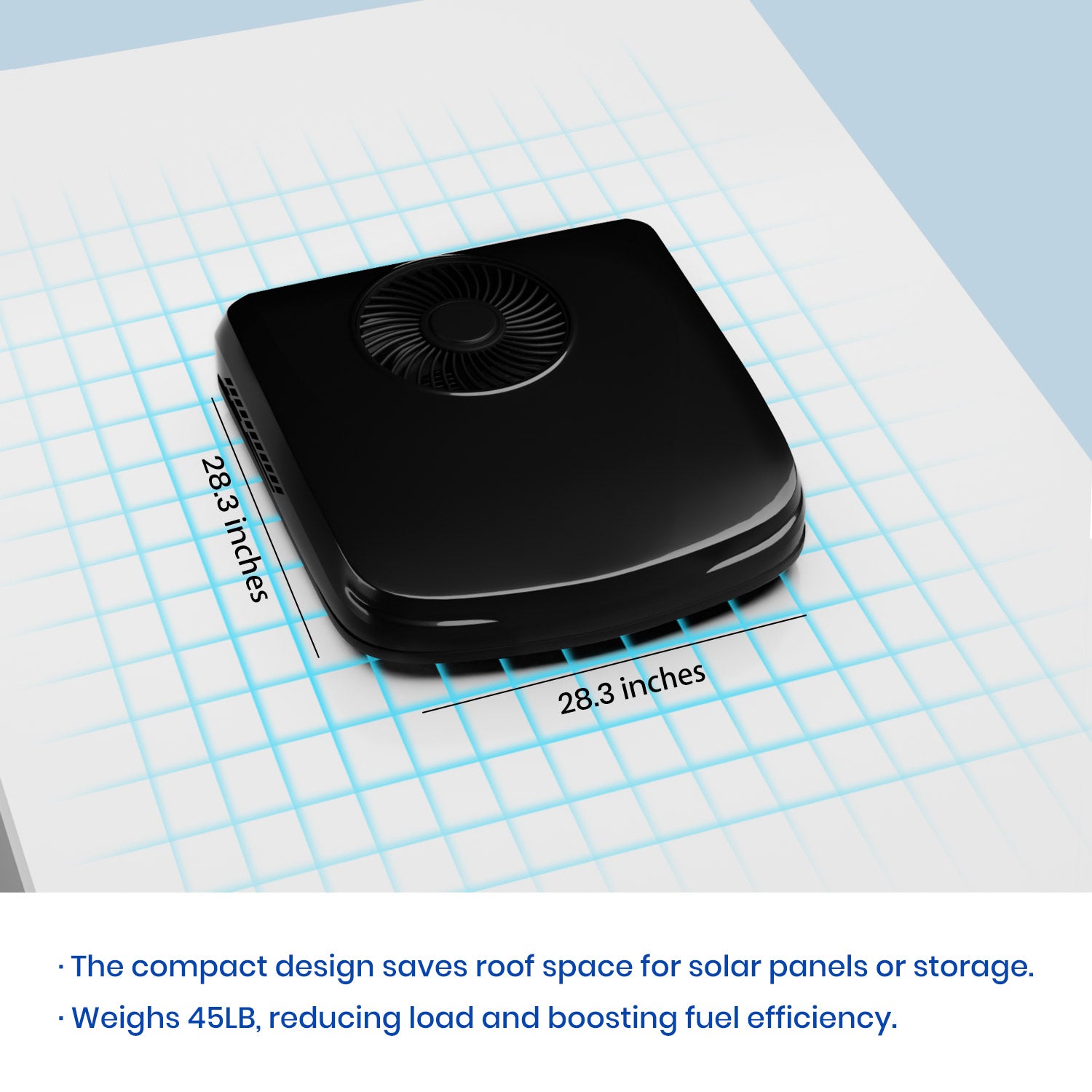

Lightweight & Low-Profile Design
- Only 45LB total weight and just 6.3 inches high—lighter and sleeker than traditional RV air conditioners.
- Minimizes vehicle load, improves fuel efficiency, reduces wind resistance, and protects roof integrity, perfect for your journeys ahead.
Battery-Safe Comfort
- With overtemperature, undervoltage, overvoltage, and overload protections, our system keeps your battery safe while delivering uninterrupted air comfort.
Key Components
-
Advanced Scroll Compressor
- 12V/24V DC Powered.
- Intelligent variable frequency ensures optimal temperature regulation.
-
Quiet Brushless Dual-Fan Blower
- Balanced, efficient airflow.
- 450 m³/h for rapid climate adjustment.
- Silent BLDC fans, quiet 40 dB operation.
-
Waterproof Condenser Fan
- Waterproof design for all weather conditions.
- All-copper motor BLDC fan for durability and efficient heat dissipation.
-
Zinc-sprayed Condenser
- Zinc-sprayed for corrosion resistance and enhanced heat dissipation.
-
Advanced Coating Copper Evaporator
- Copper evaporator with advanced coating improves heat transfer and corrosion resistance for better efficiency.
- Durable design reduces maintenance and extends the lifespan of the unit.
-
Smart PTC Heater(optional)
- Safe and energy-efficient heating.
- Consistent temperature for cozy comfort.
- Optimizes power use for sustainable warmth.
3 Steps Easy Install
Installations Gallery
-
Installed on Camper
-
Installed on RV
-
Installed on TRAILER
-
Installed on tractor
-
Installed on Trailer
-
Indoor Unit on trailer
-
Indoor unit on van
-
Installed on rv
-
Installed on truck
-
installed on van
-
installed on boat
-
installed on boat
Specifications
Customer Reviews
Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
M
I am a mobile dog groomer, and I needed an ultra efficient air conditioning unit that I could use on the roof of my van so that when I plug into the customer's house I would not trip the circuit. After years of attempting to use a non DC air conditioner, which almost always tripped the circuit of my customers' house, I decided to try the Outequipro DC unit through a converter, and it has worked marvelously! This lightweight AC unit has a slow startup so it never trips the circuit.It has very nice cooling capabilities, lowering the temperature in my van on a sunny day from 100 to 90 in about 30 minutes, which is a more noticeable difference than the numbers appear: the dogs stop panting when I am giving them a haircut. Moreover, it's also very light with a very low profile, and it looks very sharp on the top of my van unlike the typical energy guzzling non DC unit I had in another van.
I bought this particular unit due to the fact that I got instantaneous and qualified advice from the moment I started communicating with Outequippro. All of my questions and concerns were immediately answered by a real life human being right here in the United States of America.
I would say the only downside was the installation, which was quite a bit trickier than we expected. This unit replaced a maxx fan rooftop fan; however, the console of the unit had a gap of about 1/4 inch after the complete installation--which I see is very common with other installers of this unit on the Internet. All I had to do was screw into the ceiling the plastic console and put a light bead of caulk to seal the edges. A more professional look would have been to have 1/4 inch thick frame underneath the lip of the console.
Other than that this unit has so far been very reliable, starts up very slow, cools very rapidly, and is almost whisper quiet: you don't even know it's running-even on turbo speed.FYI, after running the power through an AC to DC converter, the power draw is 7 AC amps on Turbo mode and almost 4 on Eco mode. Highly Recommended!
N

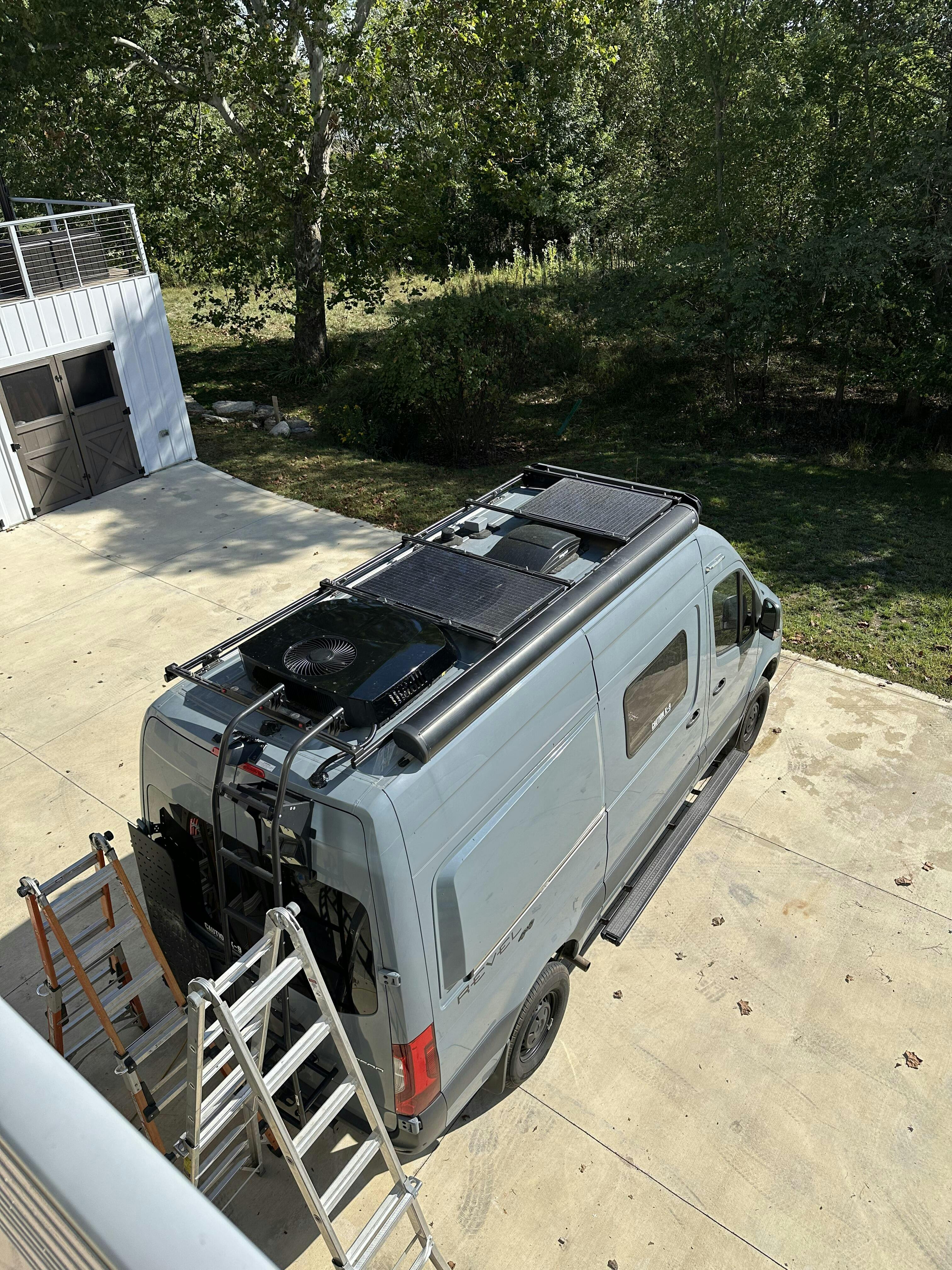

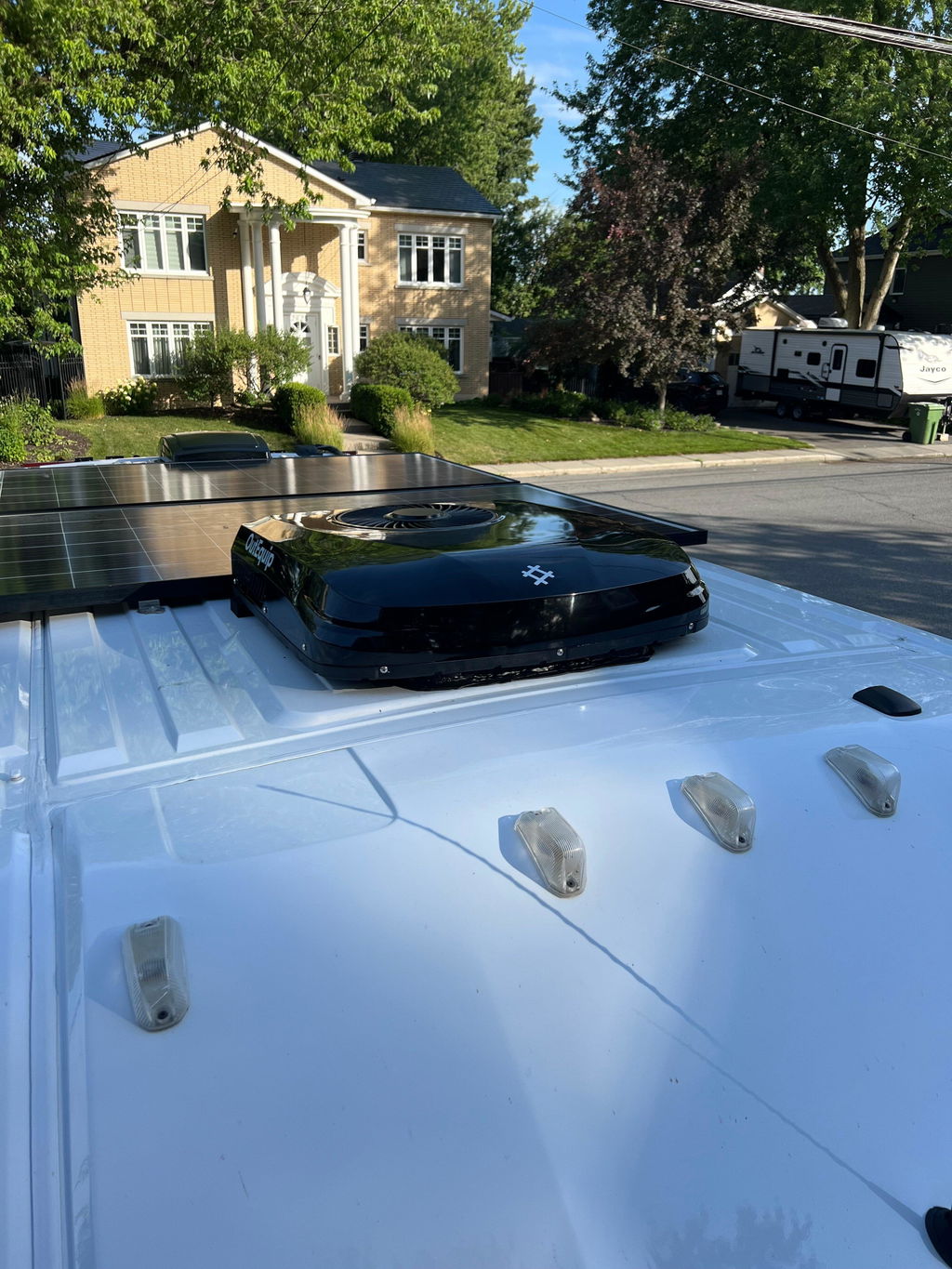

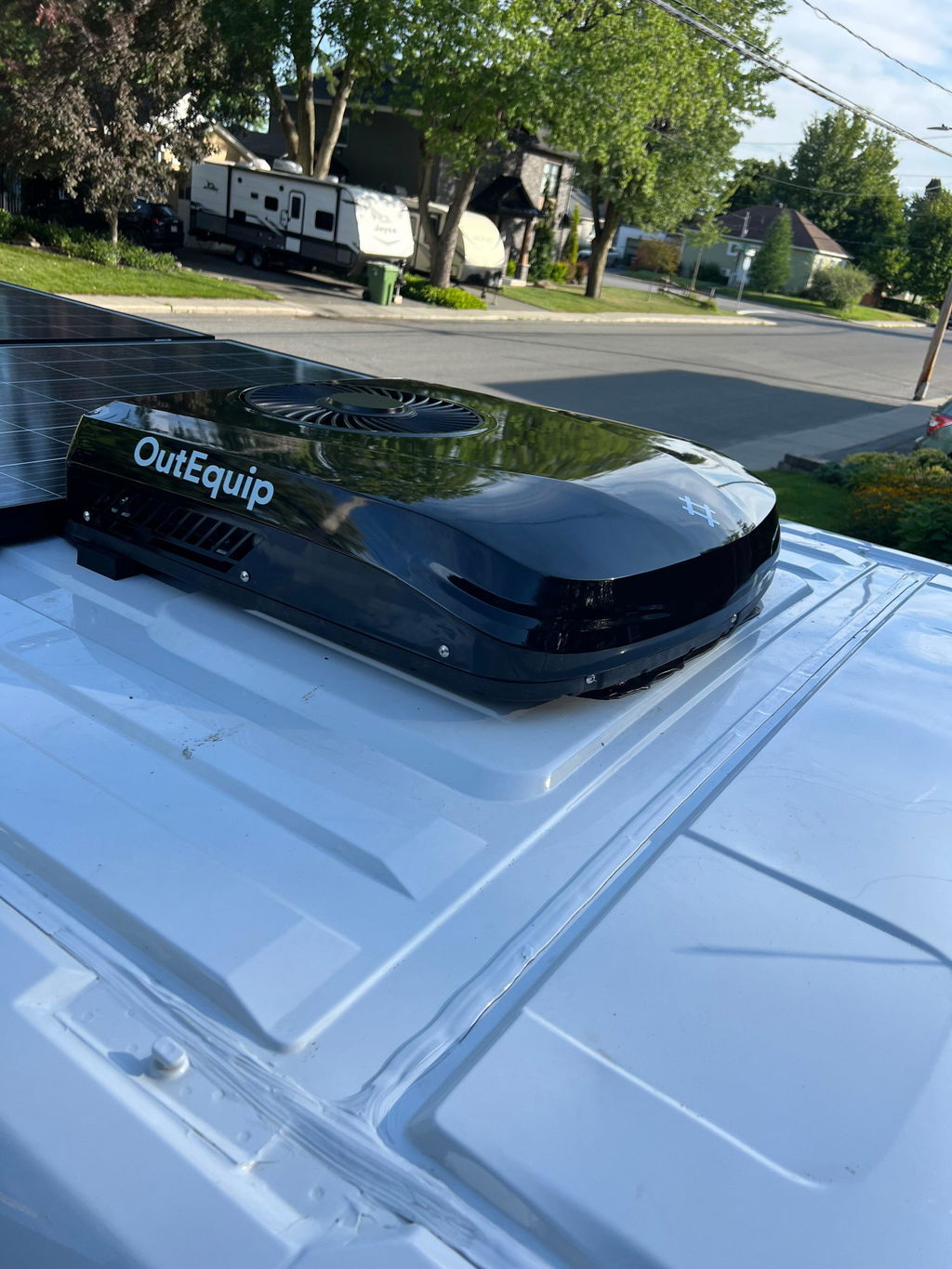

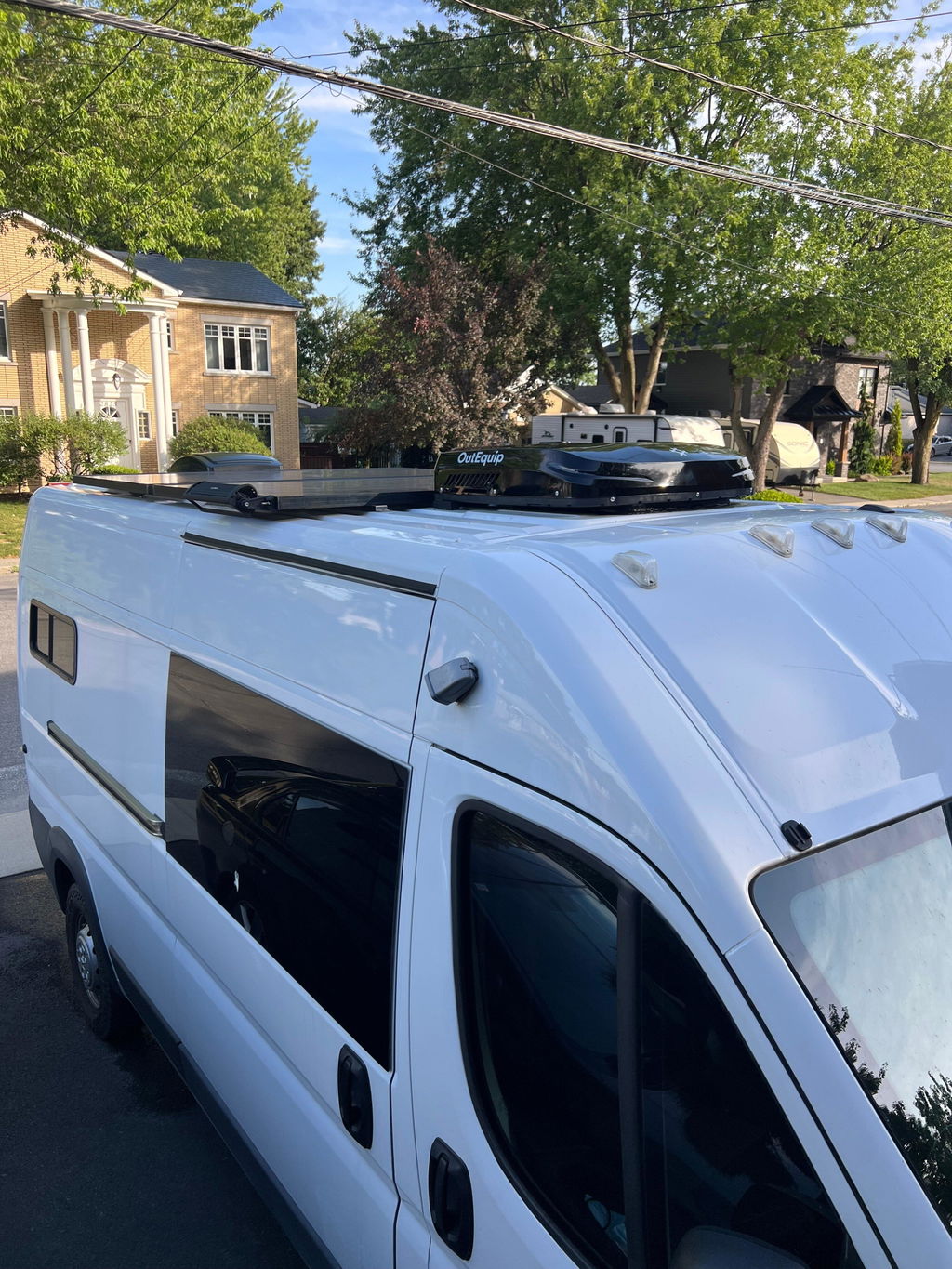

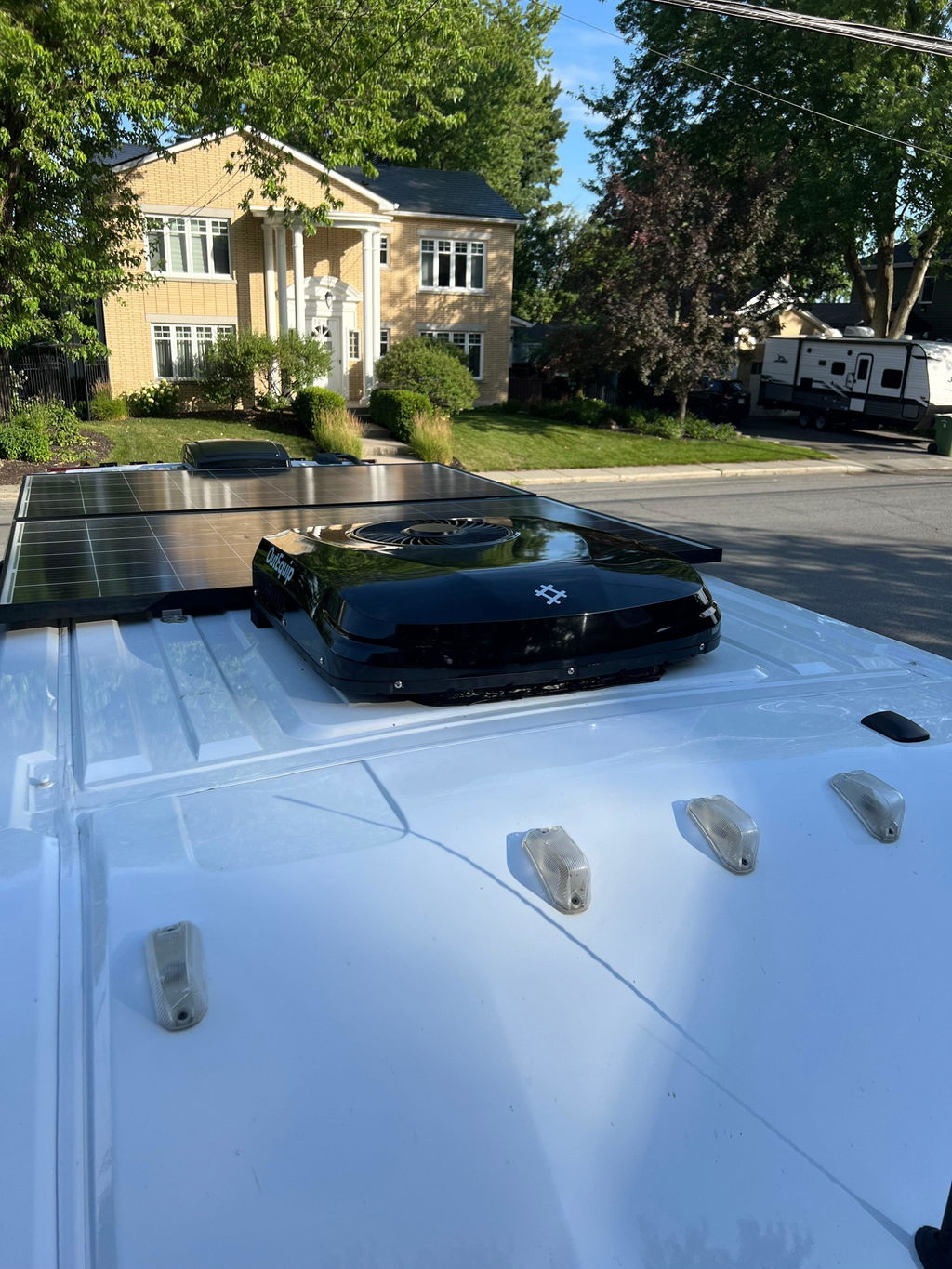

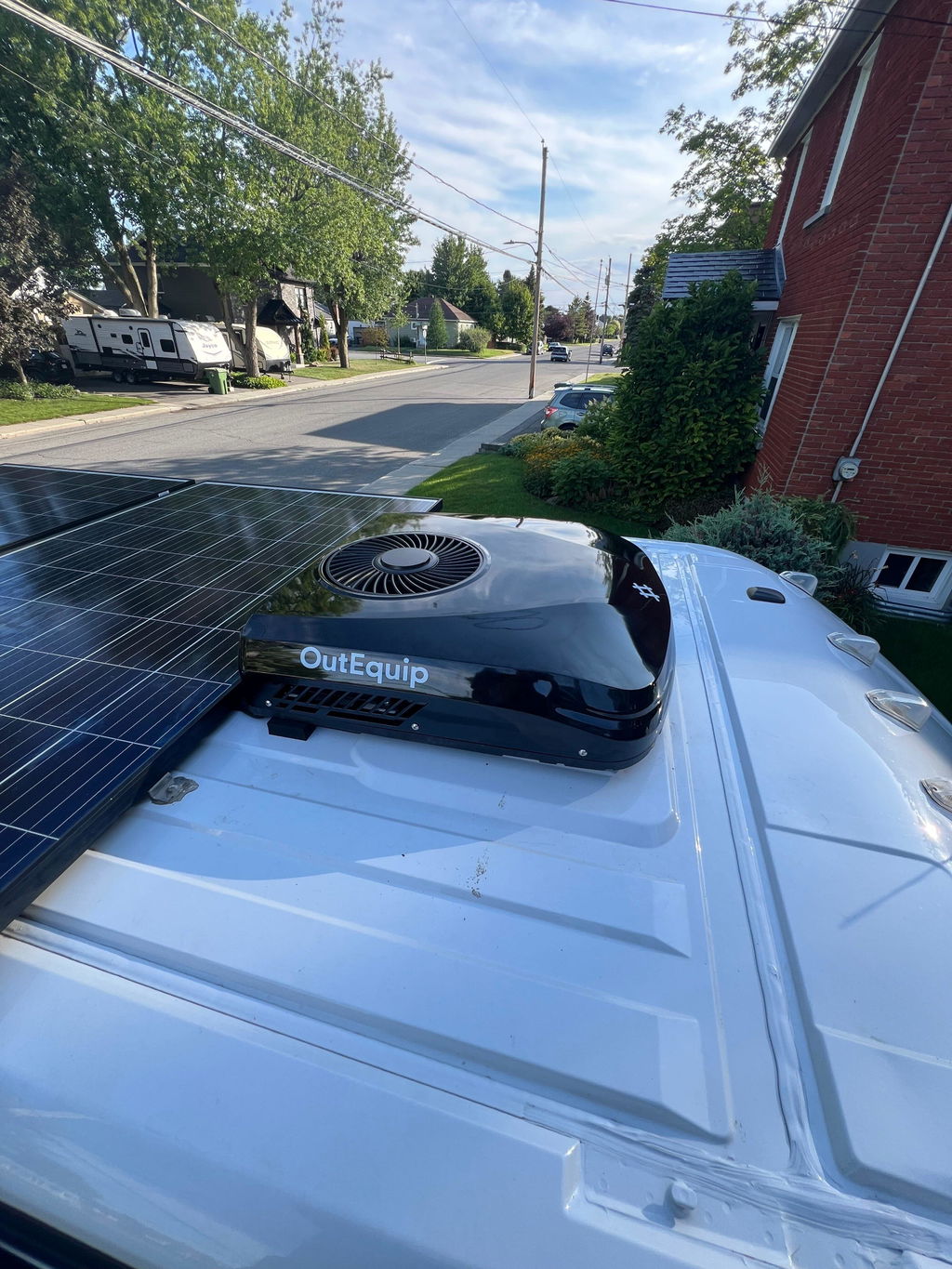

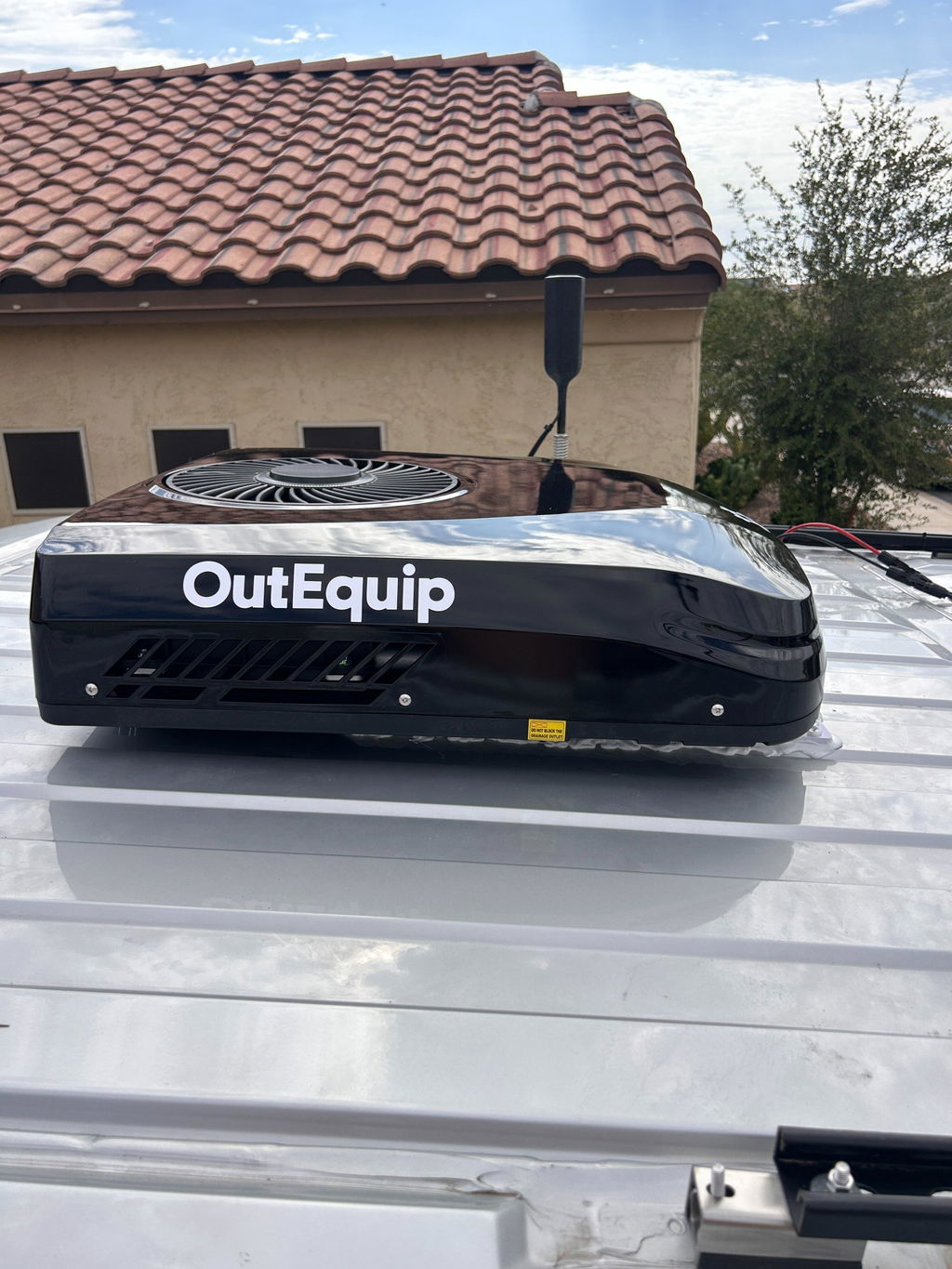

My Promaster van was already fully built, with the solar panels and a Maxxair fan installed on the roof. Fortunately, the OUTEQUIPRO unit was compact enough that I was able to remove the fan and fit the AC perfectly between the solar panels.

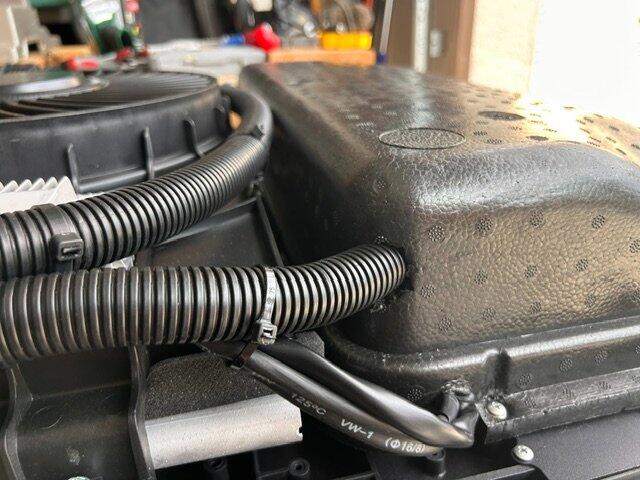

I was really pleased that the wiring runs outside the van instead of inside, since my roof is completely sealed. The installation process was a breeze—I honestly had a great time installing it!
The black trim looks fantastic, and in terms of performance, I was impressed by how little power it draws. It consumes about as much as my Xbox, which I found kind of funny! The air coming out of the unit is ice-cold—perfect for our Canadian summers.
I’m genuinely happy with this purchase and would definitely recommend it to other campers!
J
Very well made unit. Easy to install. Customer support was fast to get back to me.
D
Just installed the unit. The insulation with the unit was a little tricky because it was oversized for the unit. I had to cut to size, which concerns me with the seal but the unit is working well. In 83 F with two people in a 14 ft Grand Ascape it is cooling easily. Its about to rain so I will test the seal.
