Cooling Performance: The massive 12,500 BTU capacity rapidly cooled the 140 sq ft cabin from 76°F to 66°F in under 45 minutes, even as exterior temperatures steadily rose.(29:46)
Noise Level: The indoor unit runs exceptionally smoothly, emitting a gentle ambient hum that becomes noticeably quieter once the target climate is achieved.(30:00)
Power Consumption: Supported by daytime solar production, the system continuously runs without touching the main reserves, keeping the battery firmly at its starting voltage.(26:26)
Recommendation: The host confirms this 12V system is an incredible solution for off-grid builds, praising its ability to rapidly drop room temperatures while running purely on solar power.(30:23)
Detailed Analysis

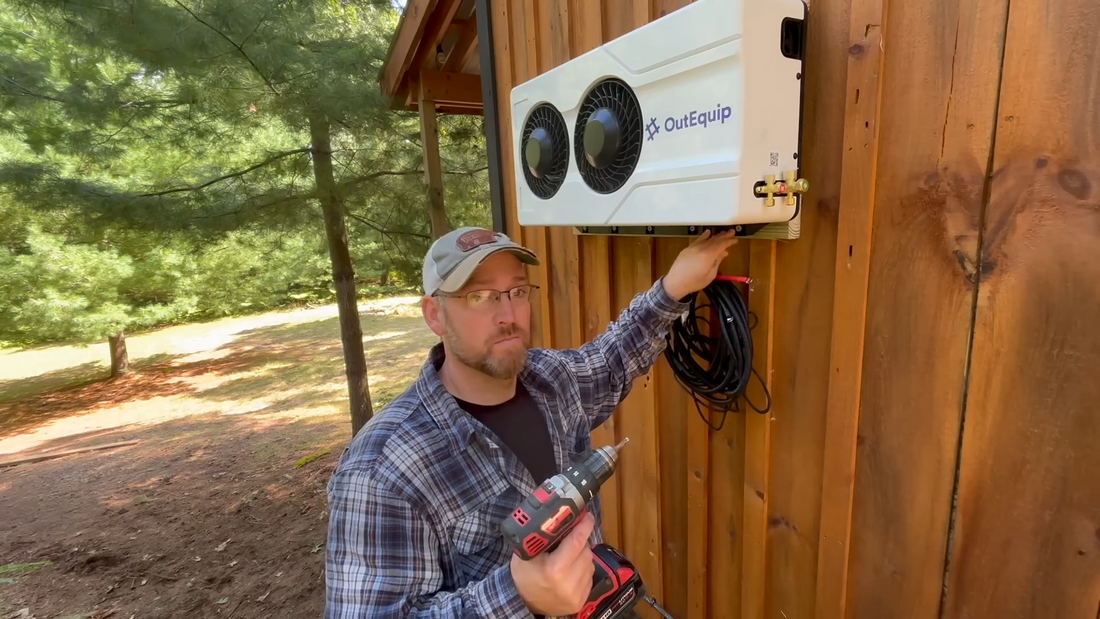

Designing a comfortable off-grid cabin comes with immense climate control challenges. Usually, builders are forced to rely on noisy generators or massive, highly inefficient inverters to run household appliances. Seeking true independence, the host decided to test the OutEquipPro 12V DC Mini Split Air Conditioner. Powered exclusively by a 12V battery and 800W solar array, this specific installation pushes the system's limits, as it is traditionally engineered for smaller van and RV profiles rather than large stationary structures.
Precision Wall Penetration & Wiring
Routing the thick 11-foot power cable and 10-foot control cable through heavily insulated wooden walls required careful fabrication. The host had to navigate dense internal insulation to ensure the high-pressure lines, low-pressure lines, and drain tubes could pass through without obstruction. The physical procedure included the following critical steps:
- Drilling pilot holes while running the drill bit in reverse to prevent snagging the dense wall insulation.
- Expanding the primary high and low-pressure line openings to 1-1/8 inch and 7/8 inch to comfortably fit the brass fittings.
- Feeding the electronic control wires through the rubber sealing grommet before clicking the coolant hoses into place, avoiding a frustrating re-assembly process.
- Using hand tools (or a drill clutch set low) when tightening the outdoor unit's 40-pound plastic mount to completely avoid stress fractures.
The Vacuum Pump Reality Check
Unlike simple portable units, a true mini-split requires a deep vacuum purge to remove all air and moisture from the lines before releasing the pre-charged refrigerant. The host successfully achieved a steady negative 30 vacuum and held it for 40 minutes to confirm there were absolutely no leaks.
Massive 12,500 BTU Performance Benchmarking
The true benchmark of success was whether a 12V unit designed for vans could handle a massive 10x14 foot room with 12-foot ceilings. The host conducted a rigorous thermal test while monitoring both ambient temperatures and the solar charge controller.
| Time Check | Indoor Temperature | Outdoor Temperature | Net Thermal Change |
|---|---|---|---|
| 4:13 PM (Start) | 76.0°F | 75.6°F | Initial Baseline |
| 4:55 PM (End) | 66.0°F | 77.0°F | -10°F Inside |
Despite the outdoor heat actually increasing by nearly two degrees during the test, the 12V system forced a rapid 10-degree interior drop in just 42 minutes. Most impressively, the daytime solar production fully neutralized the electrical draw. The battery bank remained at its exact starting voltage throughout the intense cooling cycle, proving that off-grid comfort can be completely sustainable without burning fossil fuels.
