12V Integration: The unit can be tied into the camper's 12V electrical setup cleanly.(18:13)
Easy Installation: The template and four-bolt layout made the custom roof install easier to control.(2:14)
Form Factor: The roof body is described as 7.1 inches tall, keeping the custom mini camper from gaining a bulky RV-style rooftop look.(11:24)
Recommendation: The 12V AC feel like a practical upgrade for a compact custom camper.(23:36)
Detailed Analysis
A Winter Job Aimed At Summer Comfort

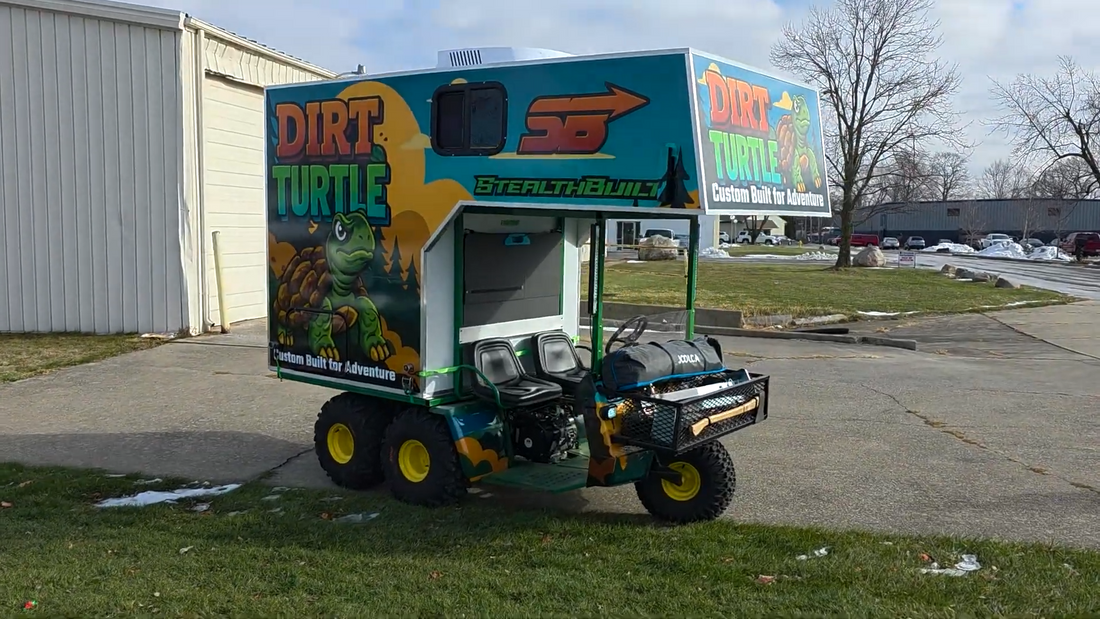

Sam Kimmel approaches the project as a seasonal timing decision, not a quick accessory swap. The Dirt Turtle custom mini camper is being prepared in winter so the first warm trips do not turn into shop days.
The pain point is easy to understand in a camper this small. Cooking, sleeping, ventilation, and heat buildup all happen in a tight shell, and the previous experience with steam and cooking fumes made airflow more than a comfort detail.
That is why the OutequipPro roof AC unit matters in this build. It brings roof-mounted cooling into a compact camper layout while staying tied to a 12V battery bank connection instead of depending on a household-style AC setup.
The Location Was Chosen Around Headroom And Structure
The first real decision is not wiring or bolts. It is where the ceiling assembly can sit without landing in head space or cutting through the support structure.
- The trim bezel hangs down by roughly 1.25 inches, so the placement has to stay away from standing and climbing zones.
- The controls need to remain reachable from the bed and from the main standing position.
- The roof rivet lines are used to read where support braces run before any cutting starts.
- The cut is planned so the AC weight lands near structure instead of floating over a weak section.
Sam avoids a single aggressive plunge cut through the whole roof. He plans to cut the inner ceiling and outer roof skin separately, keeping the blade shallow and clearing the foam between layers with more control.
The Template Turns A Custom Roof Into A Controlled Cut
The included template becomes the anchor for the whole installation. Sam measures from the rear and side, transfers the location with a cardboard reference, and drills locator holes so the inner and outer openings match.
- Measure the proposed opening against the camper roof and the interior headroom zone.
- Drill straight locator holes through the roof panel to transfer the position.
- Trace the template on the inside ceiling panel.
- Cut the opening while keeping the blade depth under control.
- Drill the four mounting holes as square as possible so the bolts land cleanly.
- Confirm the bolt pattern against the unit before the AC is finally set in place.
This is where the project becomes relevant for other custom campers. A standard replacement may be close to plug-and-play, but a handmade roof demands slower measuring, support checks, and alignment checks before the seal ever touches the panel.
The Gasket Details Matter More Than The Cutout Drama
The waterproofing step gets real attention because the camper had already stayed dry in weather. The goal is to avoid creating the first leak while adding the roof unit.
- The roof film is peeled only where the seal and AC body need clean contact.
- The panel surface is cleared before the gasket goes down.
- The seal is started carefully and worked around the roof opening instead of being stretched randomly.
- The seam is placed at the rear so forward road spray does not hit the opening edge first.
- The seal is cut at an angle for a cleaner meeting point.
- Additional sealant is planned around the top according to the installation approach.
The gasket is not treated as generic foam. Sam notes the hard rubber spacers built into it, which allow about 1/4 inch of compression before the seal stops collapsing. That small detail helps keep bolt pressure from crushing the gasket flat.
The Cable Route Gets Cleaned Up Before Final Mounting
The power cord originally exits on the right side, while the camper's preferred wire path is on the left. Instead of running the line across the outside, Sam and Ryan remove the cover and check whether the lead can be routed through the alternate opening.
That small custom change takes about 2 minutes once the unit is open. The wire is passed underneath the internal path and brought out through the other side, leaving the exterior cleaner and reducing exposed cable routing on the roof.
The open cover also reveals a serviceability detail: the unit has a recharge access point. Sam compares that favorably with basic RV roof units that may force a full replacement when a service port is missing.
Weight, Profile, And Final Cabin Ergonomics
The unit is weighed informally during the install and comes out around 70 pounds with wiring. Sam also points out that the camper roof panel is sturdy enough for the load, even while he is standing on the roof during prep.
The roof body is described as only 7.1 inches tall, which matters on a mini camper. A tall box would visually dominate the build and add more rooftop bulk than the small shell needs.
- The interior bezel is mounted above the bedding area rather than in a head-strike zone.
- The control panel is reachable from inside the sleeping space.
- The user interface includes push-button operation, temperature setting, fan adjustment, and heat/cool adjustment.
- The final walkthrough keeps the AC integrated with the camper's fireplace, storage bench, screen door, bed platform, and compact kitchen details.
The finished result is not framed as a laboratory cooling test. It is a practical readiness upgrade: when warm weather returns, the camper should already have roof-mounted 12V climate control installed, sealed, wired, and reachable from the bed.
What Buyers Should Take From This Install
For a standard RV or trailer replacement, Sam expects the installation to be much simpler because the opening may already exist. For a custom camper, the extra work is not the AC itself as much as roof planning, clean drilling, gasket placement, and cable routing.
- 12V operation fits campers, vans, work trailers, food trailers, and other builds that already live around low-voltage power.
- Low-profile height helps the roof unit look proportional on a smaller camper shell.
- Serviceable construction gives the unit a maintenance advantage over sealed throwaway-style RV units.
- Template-based installation makes the cutout manageable when the builder respects the roof structure.
- Push-button cabin control keeps daily use simple once the hard installation work is finished.
The strongest lesson is timing. Waiting until summer means losing camping days to unfinished projects. Doing the roof AC install in winter turns the first warm weekend into a trip instead of a fabrication deadline.
