Reviewer Profile
Tested Performance
Visual Highlights
Cooling Performance: Thermal readings confirm a rapid interior drop to a comfortable 67.5°F, effectively fighting off the intense 83.3°F direct sunlight baking the exterior.(19:33)
Noise Level: The unit runs exceptionally smooth, bypassing the disruptive kicks of traditional "window shaker" units and emitting only a gentle, sleep-friendly ambient hum.(18:45)
Power Consumption: Deep electrical efficiency is demonstrated as the 334W solar input perfectly offsets the compressor's draw, holding the battery steadily at 100% capacity.(18:39)
Off-Grid Runtime: Intelligent power management allows for massive endurance, delivering up to 8 hours of cooling on a single charge, expanding infinitely with daytime solar.(18:10)
Form Factor: The sleek 6-inch exterior shell integrates smoothly with the roofline, eliminating wind resistance penalties and anxiety over low-hanging tree branches.(00:28)
Recommendation: This dedicated 12V system completely redefines the camping season, converting an uncomfortable hot box into a fully climate-controlled summer retreat.(19:56)
Detailed Analysis

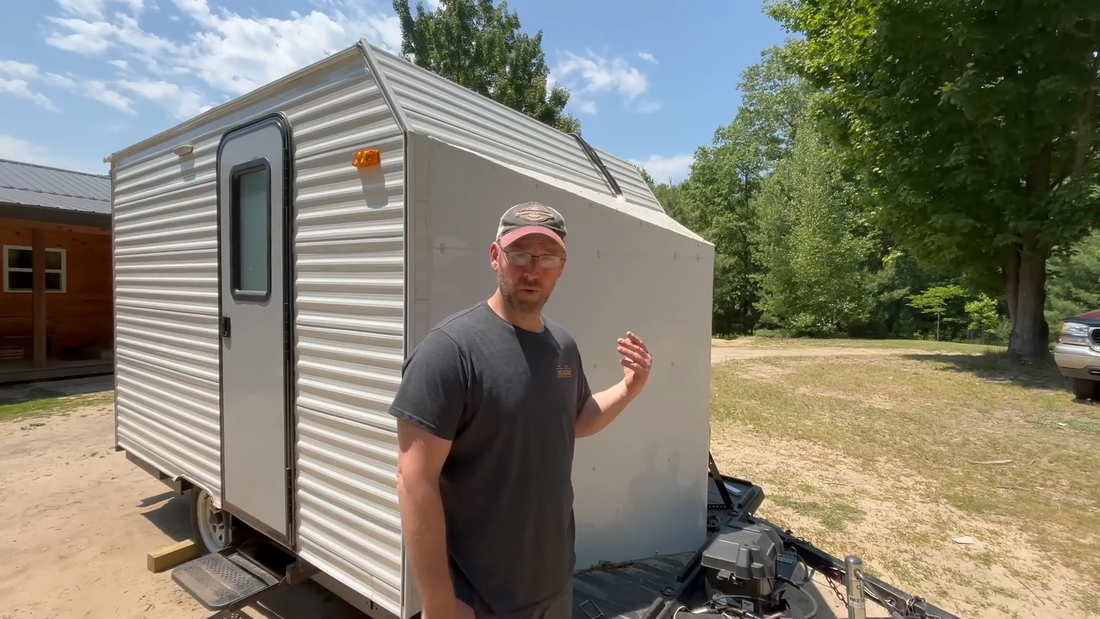

Building a custom DIY camper trailer from the ground up often involves unique engineering choices. In this case, the builder opted for an incredibly robust 4-inch thick roof constructed from 2x4s, plywood, and a rubber membrane. While fantastic for structural integrity, it presented a massive hurdle when the summer heat demanded an air conditioning solution. Enter the OutEquipPro 12V rooftop air conditioner—a low-profile system chosen specifically to run directly off a 300Ah LiFePO4 battery without the heavy parasitic loss of an inverter.
Overcoming the 4-Inch Roof Barrier
Standard RV air conditioners are engineered for roofs measuring roughly two inches thick. Mounting a modern 12V system onto a 4-inch structure required some hardcore, on-the-fly fabrication to ensure proper airflow and a watertight seal. The physical adaptation process involved several highly specific modifications:
- Adding supplemental 2x4 wooden blocks inside the ceiling cavity to give the steel mounting brackets a solid, compressed clamping surface.
- Fabricating a custom cold-air duct extension by cutting and folding a corrugated plastic "yard sign" to bridge the massive gap between the roof and the interior shroud.
- Drilling out the factory shroud holes to accommodate custom 5-inch #8 screws, utilizing a flexible impact driver extension to reach the awkward angles.
- Using contact cement to physically reconstruct and resize the foam weather gasket to properly seal the deeper interior cavity.
Wiring & The "Solo Pull" Hack
Because of the heavy-gauge split wiring harness required for 12V power transmission, routing the cables demanded a dedicated 1.5-inch PVC conduit penetration through the insulated front wall. Gluing PVC fittings usually requires two hands—one inside and one outside—to prevent the pipe from sliding. To solve this solo, the builder utilized a clever mechanical trick: drilling a wood block, feeding a wire through it, and pulling tension from the inside. This locked the exterior bell-end firmly against the camper skin, allowing the end cap to be glued perfectly in place before sealing the entire assembly with putty tape and marine silicone.
Solar Synergy & Inverter Technology
The true magic of a native 12V system lies in its electrical efficiency. During the initial thermal test, the camper was parked in direct sunlight with an ambient exterior temperature of 83.3°F. After 70 minutes of operation, the interior plummeted to a highly comfortable 67.5°F. Because the unit utilizes variable inverter compressor technology, it seamlessly throttles its power draw once the target temperature is reached.
| Operating Mode | Expected Runtime (300Ah Battery) |
|---|---|
| Standard Mode | 4 to 6 Hours |
| Eco Mode | 4.8 to 6 Hours |
| Sleep Mode | 6 to 8 Hours |
The real-world electrical feedback was stunning. Even while actively cooling, the charge controller confirmed that the roof's solar array was pushing 334 W into the system, perfectly neutralizing the air conditioner's draw and holding the battery state firmly at 100%. Furthermore, the heavy-duty power cables remained completely cool to the touch, proving the electrical load was operating well within safe, sustainable limits.
