Cooling Performance:In Eco mode at 78°F, the unit easily kept the interior comfortable against 82°F outside heat – even without window covers.(19:03)
Power Consumption:Total system draw measured only 14.30A – incredibly low for a 12V rooftop unit.(19:19)
Customer Support:When a torque spec issue caused a brass insert to spin, OutEquipPro’s support team (Michael) responded immediately, confirmed the correct lower torque (1–2 Nm), and is updating their manual – real accountability.(11:28)
Recommendation:A perfect high-efficiency 12V off-grid upgrade for summer band tours – lightweight, quiet, and backed by a company that listens.(19:27)
Detailed Analysis
Ditching the Rooftop Monster for Low-Profile Efficiency
Hitting the tour circuit across brutal, high-temperature locations demands dependable climate management for a mobile studio. Touring life in a Chevy Express Van means managing space and weight efficiently, two things old-school cooling systems completely ignore. Having previously wrestled with a bulky Coleman Mach 3 rooftop unit—a massive monster requiring multiple people to handle—switching to modern 12V engineering changes everything.

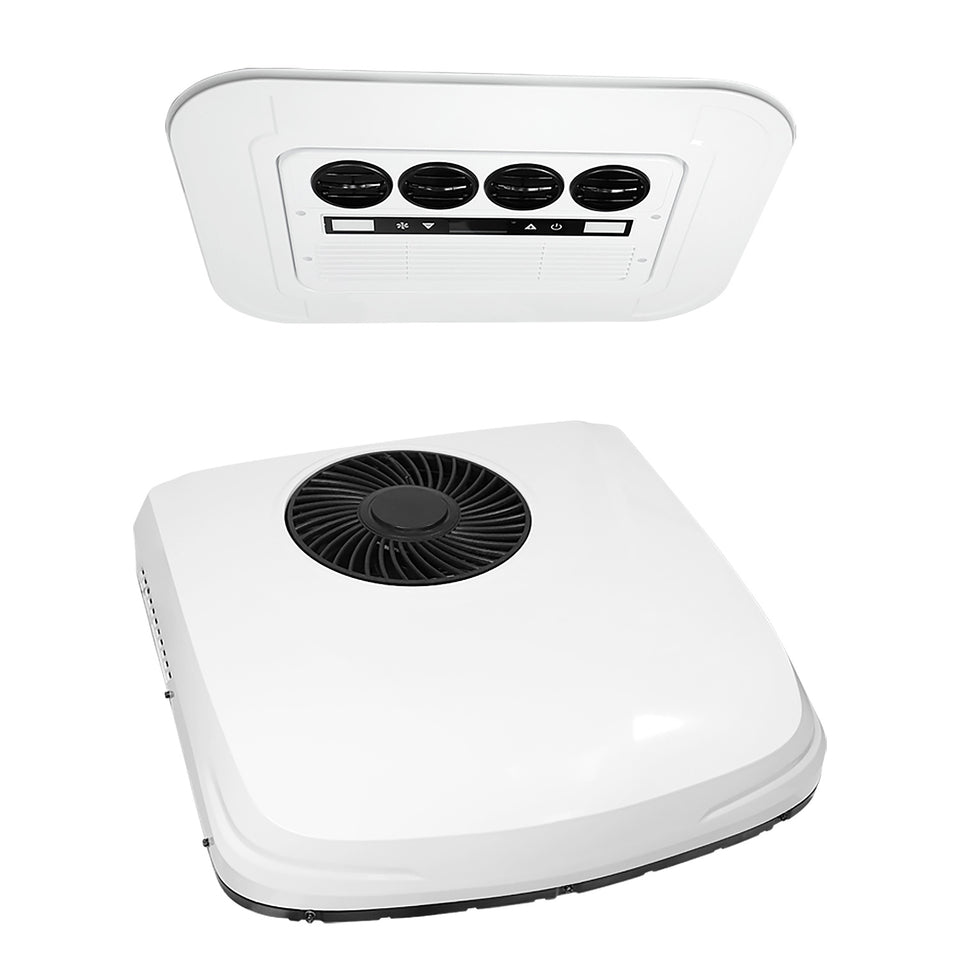

The starkest upgrade noticed right out of the box is the highly lightweight design of the OutEquipPro. This strategic weight reduction eliminates the need for expensive lifting tools and simplifies the build with several distinct off-grid advantages:
- A single person can safely lift, maneuver, and align the unit on the roof without any secondary assistance.
- It prevents any unnecessary structural strain or roof sagging on older utility van frames.
- The entire setup seamlessly transforms from a high-risk group chore into a smooth solo project.
Pre-Installation Disassembly and Roof Prep Mechanics

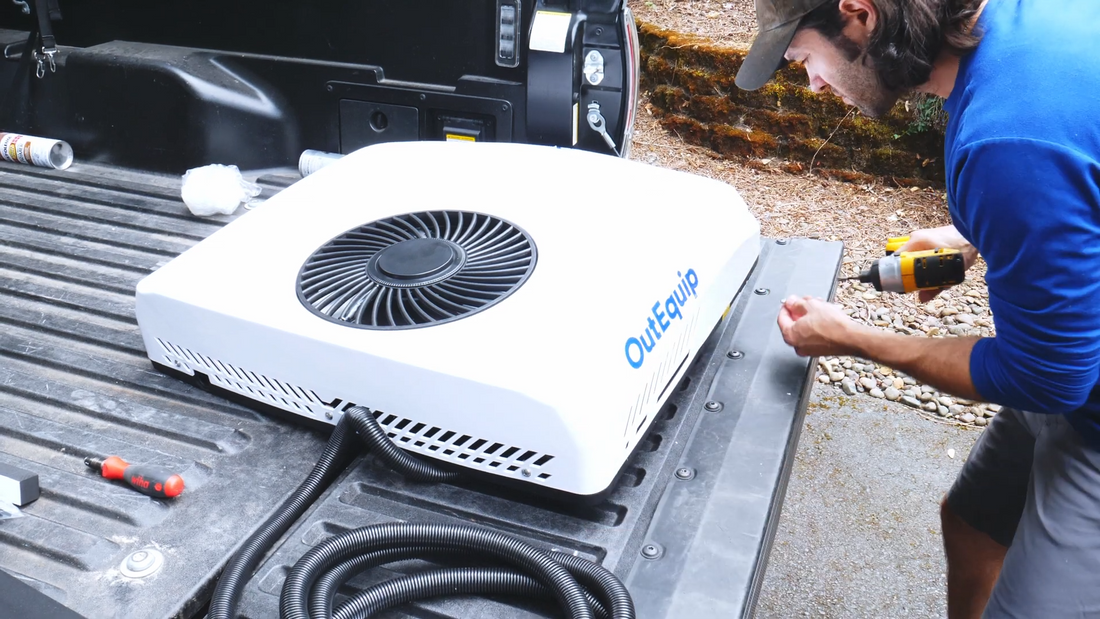

The installation process starts on the ground before the unit ever touches the vehicle roof. To facilitate routing the heavy-gauge power lines cleanly down through the internal return air ducting rather than exposing them on the roof exterior, some preliminary disassembly is required.
Follow this precise operational sequence to ensure proper hardware preparation and surface bonding:
- Use a Phillips head tool to back out the three screws located on the front, back, and each side of the outer protective cover.
- Remove the internal styrofoam fan shroud by unscrewing multiple Phillips screws, tracking the small rectangular washers carefully to prevent them from dropping into the core mechanical components.
- Gently peel back the factory-applied rubber tape sealing the freon line entry points on the shroud to preserve the weather-tight seal for later reassembly.
- Retrieve the system remote control, which is safely stowed within the air duct for transport.
- Scrub the paint surface around the standard 14x14-inch roof opening thoroughly using a 50/50 mixture of isopropyl alcohol and water to clear oil and grime.
Conforming Gaskets to Roof Ribs and Managing Drainage
The corrugated roof lines of standard utility vans present a common sealing challenge. While thick gaskets can compress enough to conform to small metal ridges, achieving a completely flat, waterproof base requires precise interspace management.
To prevent any potential rainwater pooling or structural leaks on uneven metal ridges, adhere to the following steps:
- Dry-fit and pre-plan the precise layout of the thick perimeter sealing gasket before exposing the adhesive backing.
- Peel the protective paper backing away gradually during placement to stop accidental, misaligned adhesion.
- Trim the accompanying auxiliary rubber inserts to perfectly match the height variances of the metal channels.
- Run a smooth bead of Saflex 221 polyurethane sealant right where the roof sheet metal meets the gasket edge, tooling the bead deep into microscopic gaps with a wet rubber glove.
During placement of the 28.3-inch-long chassis, precise alignment relative to the internal drainage channels is crucial. If a drainage port accidentally seats on the interior side of the perimeter gasket, it will leak condensed water inside the living space. If this occurs during a test fit, peel back the affected corner, apply a fresh bedding layer of Saflex 221 underneath, and clamp the gasket down firmly for 30 minutes to let the sealant set before proceeding. After cleaning the roof paint again, place the provided support blocks at measured intervals to distribute the weight evenly across the vehicle frame.
Internal Structural Fastening and the Over-Torque Save
Inside the cabin, the physical connection relies on heavy-duty mounting studs inserted into the base of the cooling unit. While power tools can serve as a quick time-saving utility, stopping short of full engagement is vital to keep full tactile control over the tightening force.
Pay close attention to these critical internal mechanical tolerances and hardware configurations during assembly:
- Select the longer variant from the two included stud lengths to clear thick van ceiling structures.
- If the provided flat washers do not seat cleanly within the recessed channel profile of the internal brackets, flip the brackets upside down to provide a solid mounting surface.
- Avoid using impact drivers for final tightening to prevent the brass insert from pulling out of the composite base material.
- If a thread strips from excessive manual pressure, instantly move the studs to alternative factory holes using the unit's six separate mounting locations.
- Hand-tighten the nuts evenly in a circular pattern to the updated, safer torque specification of 1 to 2 Nm (0.75 to 1.5 ft-lbs).
- Use a Dremel tool with a cutoff wheel to shear away the excess length of the protruding studs, followed by hand-filing the raw metal edges smooth to prevent insulation punctures.
Clean Conduit Routing and Electrical Integration
Routing the electrical system requires running the protective conduit through the pre-cut notch in the internal cover shroud. To minimize bulk and allow cables to slide smoothly behind wall paneling down to the main DC distribution center, the outer plastic corrugation can be removed along the interior run.
The installer completed the wiring integration securely into the vehicle infrastructure with these steps:
- Anchor the power lines securely onto the main copper freon lines with heavy zip ties, keeping the conduit on top of the freon lines to prevent outer cover interference.
- Trim back a small section of the internal styrofoam shroud with a utility knife to clear the conduit path.
- Wrap the original rubber tape tightly back around the combined wires and lines to re-establish the weather-tight seal required for proper air management.
- Disassemble the bulky factory 100-amp inline fuse block via its two internal screws to easily feed the wire through tight wall cavities.
- Connected the pre-crimped ring terminals directly into the established Integrated DC Fuse Block & Ground Bus infrastructure.
- Utilize an open fuse slot to install an additional 80-amp mega fuse, creating an ultra-reliable dual-layer safety profile alongside the factory 100-amp line.
- Plug each wiring harness into the main control board smoothly, utilizing their unique shapes and sizes to prevent incorrect connections.
Off-Grid Independence and Real-World Consumption Metrics
The ultimate reward of this technical upgrade comes down to off-grid independence and energy efficiency. Before buttoning down the faceplate with its four mounting screws, make sure to zip-tie or tape the ambient temperature sensor inside the return air path so it reads cabin air accurately. Real-world performance testing highlights the efficiency of the modern compressor design, completely eliminating inverter conversion overhead and high energy penalties.
Running the system in Eco Mode set to 78°F with the fan on its second speed level yields an incredibly low total draw of 14.30A. Crucially, this real-world figure represents the entire van's electrical demand, including running a 12V refrigerator and all interior LED lighting panels simultaneously. Even in 82°F ambient external heat without deploying heavy window covers or reflective thermal insulation sheets, the internal environment remains highly comfortable, ensuring the interior stays a cool refuge from summer heat.
Installation FAQ
-
Q: What should I do if a base mounting stud strips or spins freely during the internal brackets installation?
A: The composite base plate is engineered with six separate mounting points. If an insert fails from over-tightening, remove the affected stud and insert, then simply move your hardware to one of the remaining vacant factory holes to secure the unit safely. -
Q: What is the correct torque specification for the internal structural mounting nuts?
A: Although older product documentation may specify a higher setting, factory engineering updates recommend hand-tightening the nuts evenly to a torque of 1 to 2 Nm (0.75 to 1.5 foot-pounds) to maintain a watertight seal without risking thread damage.
