Cooling Performance: Strong cooling was backed by a 46°F reading and a measured temperature drop of more than 30°F during the turbo test.(15:32)
Noise Level: Very quiet operation remained one of the clearest benefits, even while the AC was running on turbo.(15:26)
Power Consumption: With solar disconnected and no other loads running, the AC drew 44 A on its highest turbo setting.(15:16)
Off-Grid Runtime: David estimated about 6–7 hours of max-turbo operation without solar and roughly 12 hours with continuous solar support.(16:13)
Form Factor: The low-profile shape fit the finished build well and was one of the design details David clearly liked.(19:38)
Recommendation: Strong cooling, quiet operation, and a low-profile installation left David very happy with the AC for his service-van project.(19:43)
Detailed Analysis
The Thin BrightDrop Roof Was the Real Installation Challenge

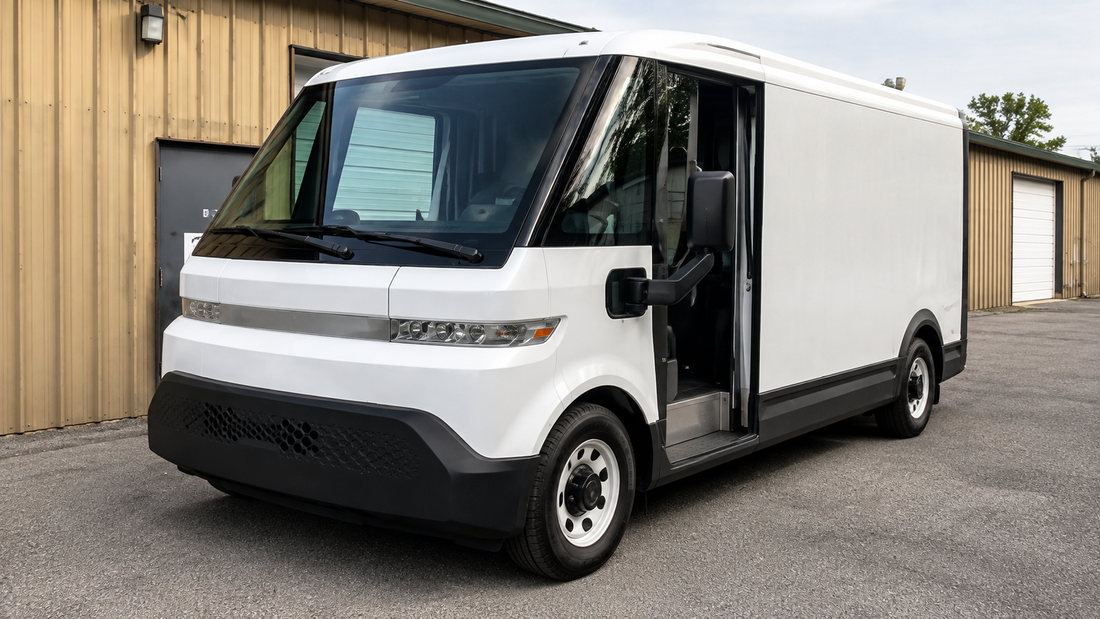

David’s goal was simple: add effective cooling to the back of his BD BrightDrop Van, which he was setting up as a service vehicle. The OutEquip 12 V rooftop AC itself was not especially difficult to install. The unusual part was the van’s very thin translucent roof, which did not provide enough structure to support an approximately 45 lb rooftop unit by itself.
He used a 14 × 14-inch opening and added reinforcement around it. A factory roof brace supported one side, while David added another structural member toward the front and formed a square around the opening with tubular aluminum. Once the unit was tightened down, the mounting area felt solid and the AC showed little movement.
The most useful installation lesson came from the gasket and drainage area. David initially positioned the gasket incorrectly and allowed water into the bottom of the unit. He corrected the installation by repositioning the gasket so the chassis drainage cutout remained outside the sealed area, then resealed the opening. For this BrightDrop installation, that drainage detail was essential to getting the mounting finished correctly.
Cooling Performance Was the Standout Result
Cooling was the strongest part of the test. From the first startup, David immediately noticed cold air from the interior outlet and repeatedly said the unit cooled the rear of the van well.
The measurements supported that impression. In one test, the outlet temperature reached 32.5°F. During a later test with the AC set to cool at the highest fan and turbo setting, the measured air temperature was 46°F with a drop of more than 30°F. These were separate operating checks, but both showed strong cold-air delivery in his van.
Quiet Operation Came With a Clear 12 V Power Figure
Noise was another immediate positive. David described the AC as extremely quiet during the early startup and again during the later turbo test. Even at the highest operating setting, noise did not become a negative part of his evaluation.
For the cleanest current-draw test, he temporarily disconnected the solar panels and turned off other loads. On turbo, the AC drew 44 A. That gives this case a useful real-world figure for what his 12 V electrical system had to supply at the unit’s highest setting.
When the solar panels were connected again, the battery-side demand improved. At fan level two, David reported that the system was gaining amps rather than continuing to draw them down, showing how much the operating mode and available solar changed the electrical balance in his setup.
His Runtime Estimates Fit the Service-Van Use Case
Based on his battery and solar setup, David estimated approximately 6–7 hours on max turbo without solar. With solar available continuously, he estimated roughly 12 hours on max turbo. These were his estimates rather than controlled runtime tests, but they were enough for him to conclude that the system fit the way he planned to use the van.
The three 200 W solar panels were especially relevant because the air conditioner did not have to be treated as a generator-only appliance. The system was built around 12 V battery power, with solar helping offset the load during operation.
A Strong Cooling Result With a Low-Profile Finish
Cooling was clearly the main success. David did test the heating function on a cooler night and found that it added some warmth to the back of the van, but he did not consider it enough for heating a large area in genuinely cold weather. His winter plan therefore included a separate diesel heater.
For the original problem he was trying to solve—cooling the rear of a working service van—the result was much more decisive. The AC cooled strongly, stayed very quiet, operated from his 12V electrical system, and sat on the roof with the low-profile appearance he liked. By the end of the project, David was very happy with the setup and considered the finished AC installation a clear success.
