Reviewer Profile
Tested Performance
Visual Highlights
Cooling Performance: The cabin reading moved from 77°F to 70°F while the unit ran, and Ben described the interior as cold enough to turn the system down after about an hour on high.(3:38)
Noise Level: The unit was listed at 50 dB on high, 45 dB on medium, and 35 dB on low, with the earlier interior noise attributed to air in the system before vacuum and recharge work.(12:52)
Power Consumption: Ben compared the expected draw of a 110V or 120V AC unit with the 12V system and reported about 400 W during operation.(5:27)
Off-Grid Runtime Plan: The installation was planned around a separate 12V system, with solar charging during the day and lithium batteries carrying the load at night.(13:05)
Recommendation: Recommended for van life, campers, RVs, and off-grid cabins where a 12V system can deliver strong 12,500 BTU cooling without relying on a heavy 110V/120V setup.(6:44)
Detailed Analysis
The Real Problem Was Humidity, Heat, and a Cabin That Needed Its Own Cooling System
Ben's project started in an 18x36 off-grid cabin after the cold season had passed and southern heat was becoming the next practical problem. The wood stove had carried the cabin through winter, but summer called for a different kind of resilience: lower indoor temperature, manageable humidity, and a cooling system that could live within an off-grid power plan.

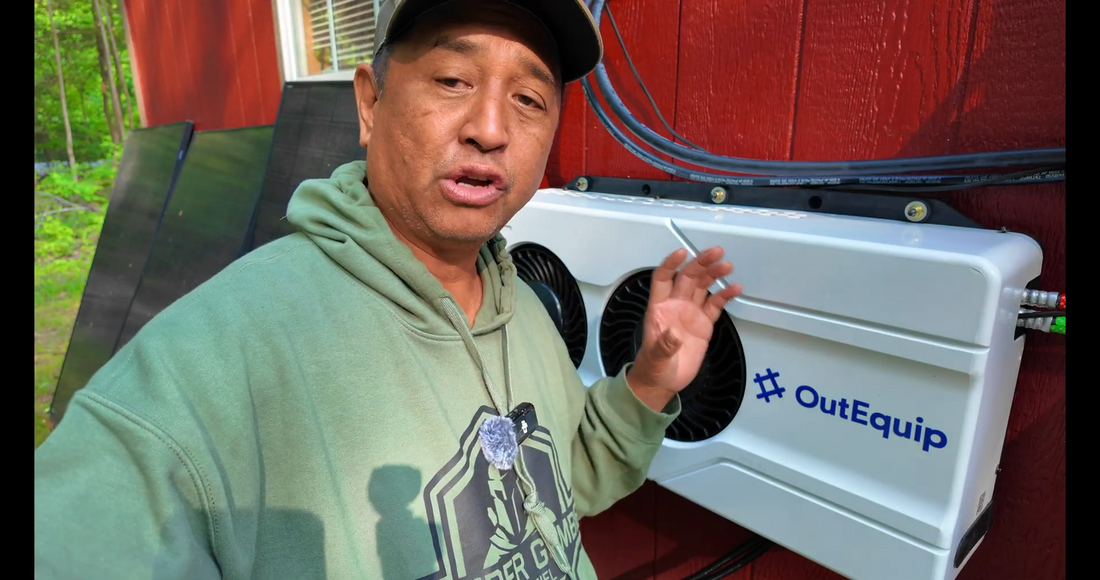

The product chosen for that job was the OutEquip 12V Mini Split AC, described in the project as a 12,500 BTU split air conditioner. The use case was not a polished shop install. It was a homestead cabin with cedar planks, thin metal behind the wall, a separate 48V solar setup already on site, and a new 12V cooling load that needed its own path.
The Install Was Simple, but Not Careless
Ben and his helpers first held the indoor bracket in place, leveled it, marked the holes, and shimmed the lower area with a wood plank so the unit could sit correctly against the cabin wall.
- The indoor unit was mounted on the cabin wall with attention to level and screw tension.
- The outdoor unit used brackets, rubber grommets, metal inserts, washers, and half-inch nuts.
- The line set, drain tube, and 12V power lead passed through a 2.25-inch wall opening.
- The hole crossed cedar and thin metal, so a pilot hole was drilled first before the larger pass-through was cut.
That small hardware sequence mattered. The rubber grommets were not decorative pieces; once compressed, they acted as vibration isolation between the outdoor unit and the bracket. The install also left the lines loose before final loom and tie wrap work because the system still needed vacuum service.
The Vacuum Step Changed the System from Mounted to Operational
The first installation session ended with the unit physically mounted, but not fully finished. Ben still needed vacuum work on the refrigerant side. The follow-up solved that gap with a technician who connected pressure lines, gauges, and a vacuum pump to the service ports on the outdoor unit.
- The gauges were connected to the high and low side of the outdoor unit.
- The vacuum pump pulled about 30 inches of vacuum.
- The system was left under vacuum for about 45 minutes.
- After moisture and air were removed, the gauges were disconnected and the system was opened.
- The housing cover was reinstalled after the system was checked for tightness, leaks, airflow, and cold operation.
This is the part a first-time buyer should not skip. Ben mentioned that the product guidance called for vacuum pump work through the manifold gauge and service ports, with a target process of 20 to 30 minutes or until the system reached 500 microns, followed by a five-minute leak hold. In his completed service visit, the gauge reading was discussed in inches of vacuum, and the system was run long enough to clear the moisture and air before final operation.
The First Cooling Run Produced a Measurable Drop
After vacuum service, the cabin finally had a real cooling test. Ben started with the indoor reading around 76.6°F to 77°F and about 75 percent humidity. The unit was set in Celsius at first, so part of the early run was simply learning the controls and confirming the system behavior.
The useful result was straightforward: the reading moved from 77°F to 70°F, and the cabin felt cold enough that Ben later turned the unit down after running it on high for about an hour. In an 18x36 cabin, that is a meaningful first run because the test happened inside the actual space the system was purchased to cool, not on a bench or in a controlled showroom.
The 12V Power Math Was the Main Advantage
The most important power detail was not only that the unit ran on 12V DC. It was that Ben saw about 400 W while watching the battery state of charge during operation. He contrasted that with the rough thousand-watt range he would expect from a comparable 110V or 120V AC approach.
That difference shaped the rest of the cabin plan. The existing large panels were tied to a separate 48V system, so the air conditioner would use a dedicated 12V battery and charging setup instead of being forced into the older power architecture.
- Rated voltage: 12V DC.
- Current range stated in the product rundown: 18 to 62 A.
- Standby power stated in the product rundown: 1 w.
- Undervoltage protection range stated in the product rundown: 8 to 11 volts.
- Maximum overcurrent protection stated in the product rundown: 100 A.
- Power cord specification stated in the product rundown: 6 gauge wire with a 10.5-foot cord length.
The planned power ecosystem was practical: run the unit from solar during the day, then use lithium batteries at night. Ben expected additional 12V lithium batteries in the 300Ah to 400Ah range and a 12V MPPT solar controller, giving the mini split its own charging lane instead of depending on the cabin's 48V equipment.
Noise Was a Setup Issue Before It Became a Comfort Feature
During the first quick power-on, the indoor unit sounded louder than expected. Ben contacted OutEquipPro support and was told that air in the system could create that interior noise before the vacuum and recharge work was completed. After the service step, the unit was described as fully operational and quiet.
The published sound pressure figures mentioned in the project give a clearer reference point: 50 dB on high, 45 dB on medium, and 35 dB on low. For a cabin where sleeping, working, and cooling may happen in the same open space, that low-speed figure is one of the more practical comfort numbers in the whole install.
The Kit Was Complete Enough, but the Manual Gap Matters
The kit included the indoor unit, outdoor unit, low-pressure and high-pressure lines, mounting brackets, power cord, remote control, screws, mounting board, washers, spacers, and wall grommet hardware. That made the physical install manageable for a DIY user with basic tools and a second person available.
The weak point was documentation. Ben did not find a printed manual in the kit, which made the rubber grommet stack-up and some installation decisions slower than they needed to be. The install still came together, but a buyer should be ready to identify the hardware order carefully and arrange refrigerant service before expecting cold air.
- Do not over-tighten the indoor mounting screws, because the mounting plate can be damaged.
- Use the rubber grommets and washers correctly so the outdoor unit is spaced and isolated.
- Leave enough access to the service ports for vacuum work.
- Seal the wall opening after routing the lines to keep weather and insects out.
- Decide early whether the 12V battery will live inside the cabin or in an outdoor battery box.
Best Fit: Off-Grid Cabins First, Then Vans, Campers, and RVs
Ben's final judgment was shaped by the actual cabin result. The system cooled the space, ran at a lower observed wattage than the AC alternative he had in mind, and could be paired with a dedicated 12V solar and lithium battery setup. For a hot-weather cabin where grid power is not the default, that combination is the reason the product makes sense.
The strongest fit is an owner who can handle the physical mounting work, understands that vacuum and refrigerant service may still be needed, and wants a DC cooling system that does not force a large inverter-centered air conditioning setup. In that role, the OutEquip 12V mini split gives a small cabin, van, camper, or RV a more direct path to summer comfort.
