Cooling Performance: Following a full year of surviving high-humidity Texas summers, the unit's cooling core remains highly efficient, consistently dropping internal vent temperatures down to a brisk 57°F without requiring the maximum turbo setting.(5:40)
Noise Level:The primary sound profile relies entirely on the adjustable fan speed, ensuring uninterrupted sleep even during peak summer nights.(3:12)
Power Consumption: Live instrumentation proves the 12V native architecture successfully limits amp draw to a highly manageable 30A on low settings, peaking at 60A only when maximum airflow is demanded.(5:11)
Build & Seal Integrity: The unit's casing is constructed from high-quality, sturdy plastic that shows no signs of discoloration after a year, while the updated gasket ensures a reliable, secure seal against the elements.(7:37)
Recommendation:Backed by a full year of reliable off-grid performance and zero major component failures, the creator unequivocally recommends this system for any camper van or RV, confirming they would confidently purchase and install this exact 12V unit in a future vehicle build.(9:16)
Detailed Analysis

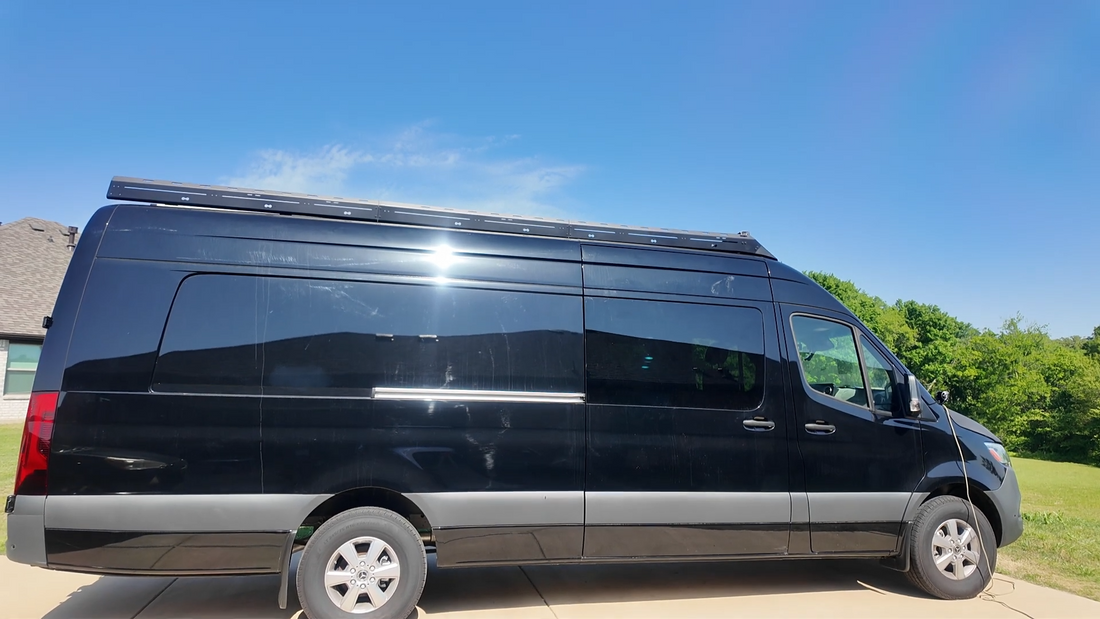

For van builders, finding a climate control solution that doesn't rely on a noisy, gas-guzzling generator is the ultimate goal. The owner of a sprawling Mercedes Sprinter 170" Extended tackled this challenge head-on by outfitting their dark-colored rig with the OutEquipPro 12V AC and Heater combo. Over the course of a rigorous 12-month evaluation encompassing Texas heatwaves and winter chills, the real-world data separates marketing claims from actual off-grid survival capabilities.
Navigating the Roof Install & Structural Reinforcement
Installing heavy appliances on a curved, ribbed van roof demands precise execution. Rather than cutting a secondary two-inch hole solely for the thick power cables, the builder utilized a clever workaround to preserve the roof's integrity.
- Precision Cutting: A 14x14 inch hole was mapped out using a 5-hole center-punch template. To avoid excessive vibration during the cut, corners were left intact until the final stage, finishing with a 4-inch disc cutter for clean edges.
- Combating Flimsy Metal: The native Sprinter sheet metal lacked the rigidity to support the unit's weight. Two solid wood braces were engineered and secured with self-leveling sealer to create a rock-solid mounting platform.
- Hardware Modification: The factory-supplied mounting studs protruded too far past the interior bracket, requiring a quick modification with a saw to ensure flush fitment with the quarter-inch interior headliner.
- The Wire Routing Hack: Instead of drilling a dedicated wire channel, the wiring was looped around the exterior support foam and brought inside by carefully notching the top edge of the sealing gasket (never the bottom, which invites water ingress).
Real-World Power Draw Matrix
Because this is a native 12V system, there is zero energy lost to inverter conversion. The entire climate system is driven directly by native 12V CommVolt 12V Power Stations, supplemented by dual alternator chargers while driving. The data reveals that 95% of the unit's energy hunger is dictated by the fan speed setting.
Thermal Optimization in Extreme Climates
During a brutally humid summer night parked in Galveston, Texas with four occupants, the AC proved its worth. However, relying solely on raw BTU output is a rookie mistake. The builder achieved a consistent 57°F output temperature by treating the van as a complete thermal ecosystem rather than just an insulated metal box.
- Strategic Heat Evacuation: Before engaging the AC, a separate 12V ceiling exhaust fan is used to rapidly purge stagnant, hyper-heated air trapped near the roof line.
- Targeted Airflow: The unit was purposefully mounted directly above the mid-section seating/sleeping area, ensuring the occupants receive the immediate benefit of cold air before it disperses.
- Active Circulation: A secondary, low-draw fan is deployed at floor level to aggressively mix the cold drop air with the ambient cabin air, maximizing the 3M insulation's effectiveness.
Long-Term Verdict: The Heating Caveat
After 365 days of continuous use, the physical integrity of the unit is undeniable. It survived a direct branch strike with no casing damage, and the updated installation gasket ensured a perfectly dry cabin interior. However, buyers expecting a blizzard-ready heater should temper their expectations. While the built-in heater is excellent for crisp autumn mornings, the localized air distribution falls short when ambient temperatures plunge below 40 degrees. The most pragmatic solution? Pairing the highly capable AC with an inexpensive, dedicated $30 localized 12V heater for deep winter excursions, creating a bulletproof, year-round off-grid oasis.
