Cooling Performance: The AC was running in Eco mode at 78°F with the fan kept on low while Boulder sat around 94-95°F under clear, intense sun.(8:16)
Noise Level: During the first powered test, the outside fan was moving hot air and the reaction centered on how quiet the unit sounded.(6:50)
Power Consumption: The Victron check showed 26A at startup, while the combined van load was roughly 300W with refrigerators, fans, and other small devices also running.(9:12)
Off-Grid Efficiency: The AC ran with such a low 12V load that a 700W rooftop solar setup could cover its operation while still returning about 200W to the battery bank in strong sun.(7:10)
Recommendation:After a 24-hour trial in 94-95°F Boulder heat, the AC turned his long-running vanlife cooling problem into a usable off-grid comfort setup.(8:35)
Detailed Analysis
Five Years Without Reliable Cabin AC Set The Real Benchmark
In a custom insulated vanlife vehicle, air conditioning had remained the missing system after five years on the road, even after living with a mini split that never solved the problem.
That history matters because the comparison was not between two catalog specs. The real benchmark was whether OutEquipPro could turn hot-weather travel from a limitation into a normal route-planning choice.The pain point was extended travel in heat near 100°F, where cabin comfort can dictate where a vanlifer can realistically stay.

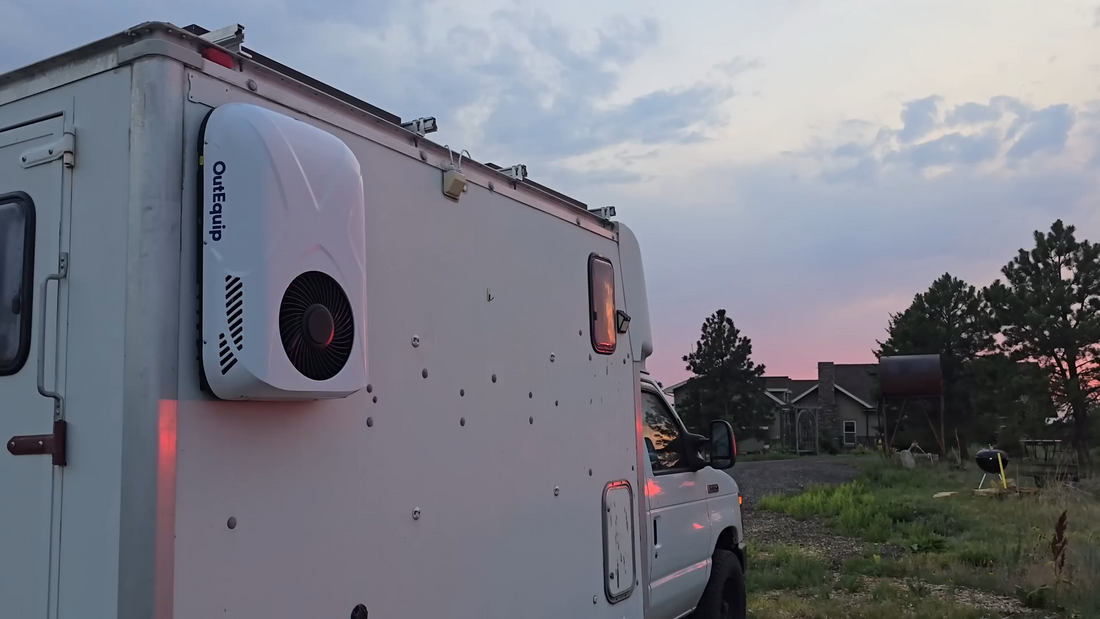

The Install Was Simple In Concept, But The Wall Was Not Simple
The core installation promise stayed clear: create the opening, mount the unit, and connect power. The reviewer emphasized the absence of plumbing, refrigerant handling, line routing, and vacuum-leak chasing, which is a meaningful reduction in complexity for van builders who do not want to build a mini split system from scratch.
The actual wall, however, added real fabrication work. The vehicle used a two-wall structure, so the team had to remove insulation, add a wood insert, trim internal material, and keep the exterior and interior faces sitting flush.
- The mounting bracket was positioned against the wall to locate the main opening.
- Insulation was pulled out so a rectangular wood backing piece could sit inside the wall cavity.
- The brace had to be adjusted after it sat too low for the final fit.
- The inside wall needed additional trimming before the unit could seat correctly.
- The finished assembly was checked from side to side, vertically, and by lifting at the rear edge.
For a metal van shell such as a Sprinter-style build, the reviewer noted that the two-wall complication may not apply. For thicker custom bodies, the lesson is direct: the AC may be straightforward, but the vehicle wall decides how much carpentry happens before tightening the hardware.
The Manual Said Six Holes, The Bracket Gave Four
The most useful installation warning came from the mismatch between the instructions and the physical bracket. The manual called for six mounting holes, but the bracket had four usable mounting points.
The reviewer also used bolts that were too long for the trim fit and later realized the shorter bolt set existed for that exact situation. The correction was not theoretical; the longer bolts needed cutting so the face trim could sit properly.
- Check the bracket before marking every hole from the manual.
- Dry-fit the face trim before committing to bolt length.
- Use the shorter bolts when the wall thickness and trim clearance call for them.
- Expect extra trimming if the wall has layered wood, fiberglass, insulation, and paneling.
Even with that documentation mismatch, the reviewer considered the four-point mount strong enough for the 40-some-pound air conditioner once it was supported through the layered wall assembly.
The First Startup Answered Two Concerns At Once
After the unit had been upright for at least a couple of hours, the first powered test brought two immediate checks: airflow and sound. The exterior side was pushing hot air, the system was cooling from startup, and the noise level was low enough to become one of the first things noticed.
That sequence is useful for buyers because it separates emotional excitement from basic operating checks. The fan was running, heat was being rejected outside, cold air was developing inside, and the sound did not dominate the work area.
- No refrigerant install meant there was no line evacuation step before startup.
- Quiet operation was apparent during the first live test rather than only after a full day of use.
- 12V power kept the system aligned with a mobile electrical setup instead of forcing an inverter-heavy workaround.
The 24-Hour Check Made The Efficiency Claim Concrete
The strongest performance data came after roughly 24 hours with the AC installed. In Boulder at about 6,000 feet, outdoor conditions reached about 94-95°F with clear skies and intense sun.
Around 10 o'clock, the reviewer ran Eco mode, which set the AC to 78°F, and kept the fan on low. The cabin stayed comfortable enough that the overnight result became part of the review, not just a short daytime test.
The reviewer also made an important practical note: insulation matters. The AC can produce cold air, but a van, bus, or custom body needs enough thermal control to hold that cold air inside.
The Solar Math Was The Turning Point
The electrical update is where the unit moved from comfort upgrade to off-grid candidate. The vehicle was running two 350-watt solar panels, for a total of 700 watts on the roof.
In bright sun with no clouds, the reviewer reported that solar production was canceling out the AC usage while still adding about 200 watts into the battery banks. That is the difference between occasional campground cooling and daytime off-grid usability.
- The Victron check showed about 26 amps as soon as the AC was turned on.
- Total visible load was about 300 watts, but that included two refrigerators, fans, and miscellaneous devices.
- The AC itself was therefore estimated below the full 300-watt combined load.
- The solar array could cover the running load under strong sun and still contribute to battery charging.
The AC was not treated as a shore-power-only luxury; it became a load that could coexist with the rest of the living system during a bright summer day.
The Final Shake Test Closed The Install
The mounting check was physical and direct. Side-to-side movement was described as zero, vertical movement was also treated as zero, and only a small amount of motion appeared when lifting the back edge away from the front.
The reviewer was not worried because the fasteners passed through multiple structural layers: three-quarter-inch wood, fiberglass, another three-quarter-inch wood layer, an additional inch-and-a-half of wood, and quarter-inch interior wood paneling.
That kind of layered support matters on a wall-mounted AC. A roof opening carries weight differently, but a wall unit asks the wall to resist vibration, leverage, and road motion over time.
A Small Heater Adds Backup Value Without Changing The Main Story
The unit also includes heat, but the reviewer was careful about the distinction. It is a resistive heater, not a heat pump, so it should be understood as backup warmth rather than a full heating-system replacement.
That honesty makes the feature easier to evaluate. The main win is still 12V cooling for hot-weather vanlife, while the heater adds occasional flexibility when conditions call for a short burst of warmth.
The Practical Buyer Read
This build is most relevant for vanlifers who already understand that AC is not just another appliance. It affects where they can park, how late they can stay in exposed heat, and whether summer travel feels manageable without chasing hookups.
The strongest case for this AC is not a single number. It is the combination of 12V efficiency, no refrigerant-line installation, quiet startup behavior, solar-offset potential, and a real 24-hour comfort check in 94-95°F conditions.
For the reviewer, the result changed air conditioning from the one missing piece of vanlife into a working part of the vehicle. For buyers with adequate insulation, enough solar, and a wall or roof location that can be cut and reinforced correctly, that is the practical reason this install deserves attention.
